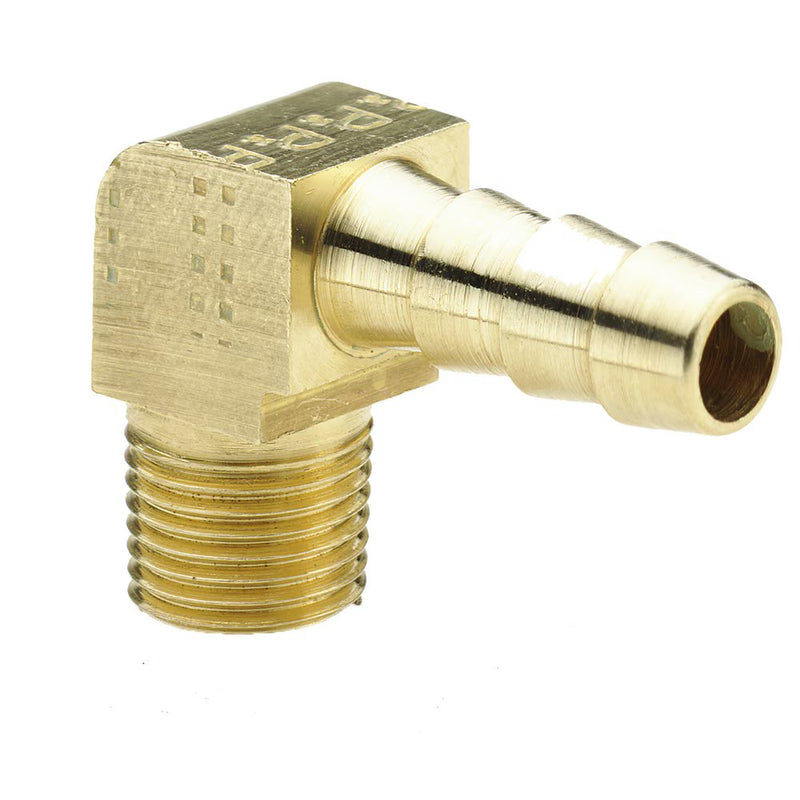

129HB-8-8 by Parker | Hose Barb Fittings | 1/2" Hose Barb x 1/2" Male Pipe Thread | 90° Elbow | Brass | Pack of 25

129HB-8-8 by Parker | Hose Barb Fittings | 1/2" Hose Barb x 1/2" Male Pipe Thread | 90° Elbow | Brass | Pack of 25

Save $29.89 Save $29.89
$328.80
$328.80 - $328.80
$328.80
$298.91
$298.91 - $298.91
$298.91

by Parker Hannifin
Hose Barb Fittings:Hose Barb 90° Elbow to Male Pipe 129HB

Package Quantity: 25 Units

Specifications for Variant SKU: 129HB-8-8 Parker | 25 |
Series: 129HB Series
Shape (Orientation): 90° Elbow
Material(s): Brass
Product Features:
  • All brass construction
  • Fluorocarbon O-rings
  • NPTF, SAE straight thread, metric thread ends
  • Reusable
  • Clamp required
Markets:
  • Industrial
  • Construction
  • Heavy duty truck
  • Mobile
Applications:
  • Air Lines
  • Water Line
  • Cooling Lines
Specification:
Temperature Range: -40° to +160° F (-40° to +71.1° C)
Pressure Range: Up to 150 PSI (10.3 bar)
Part Number ID Hose Size Pipe Thread L M N OD Flow Diameter (D)
129HB-3-2 3/16" 1/8" .97" .69" .66" .227" .173"
129HB-4-2 1/4" 1/8" 1.04" .76" .66" .290" .187"
129HB-4-4 1/4" 1/4" 1.06" .76" .82" .290" .187"
129HB-4-6 1/4" 3/8" 1.19" .76" .84" .290" .187"
129HB-5-2 5/16" 1/8" 1.06" .76" .66" .353" .234"
129HB-5-4 5/16" 1/4" 1.12" .76" .84" .353" .234"
129HB-5-6 5/16" 3/8" 1.19" .76" .84" .353" .234"
129HB-6-2 3/8" 1/8" 1.32" .97" .75" .415" .219"
129HB-6-4 3/8" 1/4" 1.32" .97" .94" .415" .281"
129HB-6-6 3/8" 3/8" 1.50" .97" 1.06" .415" .281"
129HB-6-8 3/8" 1/2" 1.52" .97" 1.25" .415" .281"
129HB-8-4 1/2" 1/4" 1.53" .97" 1.06" .530" .375"
129HB-8-6 1/2" 3/8" 1.53" .97" 1.06" .530" .375"
129HB-8-8 1/2" 1/2" 1.53" .97" 1.25" .530" .375"
129HB-12-12 3/4" 3/4" 1.33" .79" 1.27" .790" .562"
