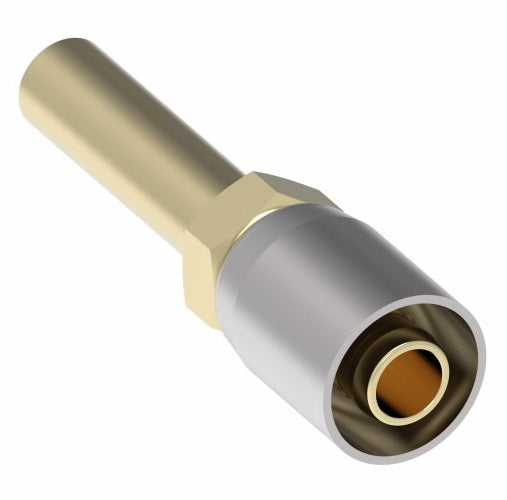

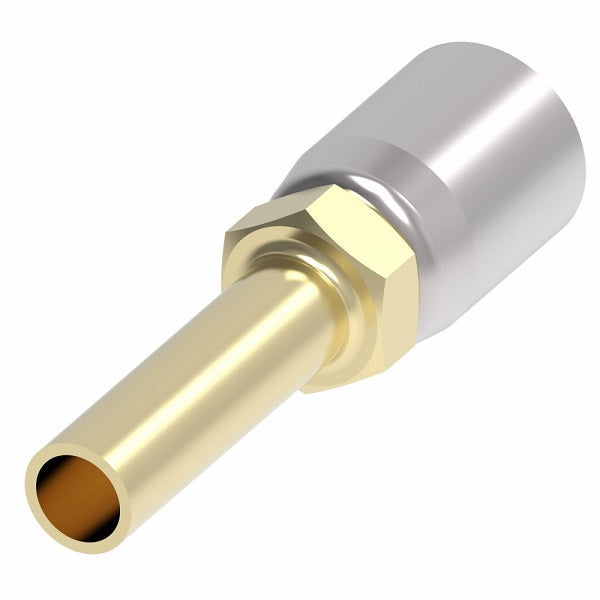

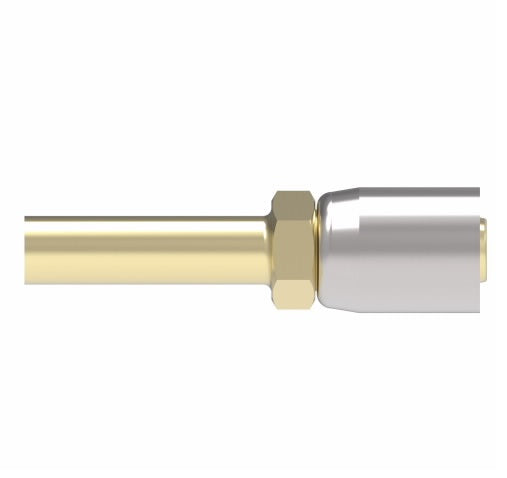

12E-T60 Weatherhead by Danfoss | Everflex E Series | Straight Tube Crimp Fitting | -10 Tube Size x -12 Hose Barb | Brass

12E-T60 Weatherhead by Danfoss | Everflex E Series | Straight Tube Crimp Fitting | -10 Tube Size x -12 Hose Barb | Brass

Name: 12E-T60 Weatherhead by Danfoss | Everflex E Series | Straight Tube Crimp Fitting | -10 Tube Size x -12 Hose Barb | Brass
Brand: Danfoss/Eaton
SKU: 12E-T60 Danfoss
Price: 58.21 USD
Availability: InStock

$58.21 - $58.21

$58.21

$58.21 - $58.21

$58.21

Weatherhead by Danfoss
Everflex 'E' Series Crimp Fitting - Straight Tube - Straight

Quantity

Specifications for Variant SKU: 12E-T60 Danfoss
Brand:	Weatherhead
Series:	Everflex E Series
Shape (Orientation):	Straight
Ends Configuration:	5/8in Hose Barb, 3/4in Hose Barb
Material(s):	Brass
Compatible with the following Series:	H243 Series

Applications:
General purpose low and medium pressure hydraulics. Use H277 where shock hazards exist.
Pressure:
Determined by maximum operating pressure for hose size and hose end configuration whichever is lesser.
Material:
Insert - Brass Collar - Steel
Compatible Hose:
For use with H243 PTFE hose Only.
Warning:
For PTFE hose applications, 'E' series fittings must be used with H243 and H277 0.030" thin wall hose only


Brass Part Number	Hose I.D.	Tube Size	Thread Size	A	Hose Cut-Off Factor	Hole Dia.	Sleeve Part Number	Nut Part Number
08E-T58	1/2"	1/2"	3.32"	2.31"	0.39"	3/4"	1360X8	1361X8
08E-T60	1/2"	5/8"	3.45"	2.44"	0.47"	3/4"	1360X10	1361X10
12E-T60	3/4"	5/8"	3.66"	2.44"	0.47"	1"	1360X10	1361X10
12E-T62	3/4"	3/4"	4.00"	2.81"	0.61"	1"	1360X12	1361X12

Note: Drawings may differ from actual parts.
