Dixon Valve & Coupling

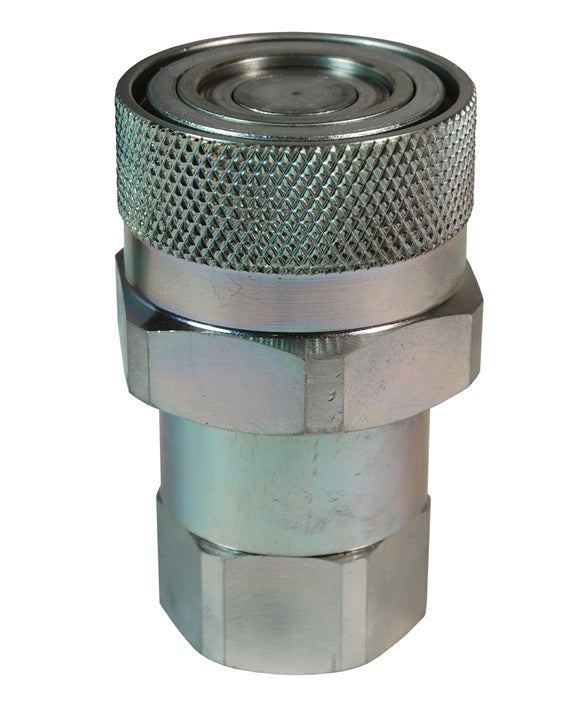

Hydraulic Coupling: VEP-Series Coupler (Female Threads)
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 12VEPF12 Dixon
Series: VEP-Series
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Female V-Series QD Interchange, 1-1/2in Female NPTF
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Compatibility & Interchange:
  • Stucchi VEP-P/VEP-HD Series, DNP PST4/FSI Series, Voswinkel FT Series, Parker FET-Series, and Holmbury HFT Series
Features:
  • Two-stage valving to protect critical sealing components during pressurized connection & disconnection.
  • Posi-Lock valve system secures valving during surge-flow conditions to prevent high-velocity damage.
  • No-spill, flush face valve minimizes air inclusion during connection and spillage during disconnection.
  • Threaded design eliminates premature wear or brinelling commonly found with locking ball designs when subjected to high impulse pressures.
Construction:
  • Machined components are manufactured using solid steel bar stock.
  • Stainless steel retaining rings and springs maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS Compliant Zinc Nickel for superior corrosion resistance.
Seal Components:
  • Plugs have Nitrile-energized PTFE valve seals, with a temperature range of -40°F to 250°F (-40C° to 121°C).
  • 3/8" plugs have molded polyurethane valve seals, with a temperature range of -65°F to 212°F (-54°C to 100°C).
  • 3/8" to 3/4" valve stems have molded acetal seals, with a temperature range of -65°F to 212°F (-54°C to 100°C).
  • 1" to 2" valve stems have molded polyurethane seals, with a temperature range of -65°F to 212°F (-54°C to 100°C).
  • Ancillary coupler and plug seals are Nitrile with a temperature range of -40°F to 250°F (-40C° to 121°C).
  • TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage.
How It Works:
  • Prior to connecting, thoroughly clean all mating surfaces and threads on both halves, the pull the coupler sleeve forward.
  • To initiate the connection, align the coupler and plug, pushing/turning the coupler sleeve towards the plug while engaging the threads. Keep the mating halves aligned during the connection process.
  • Allow the threads to pull the coupler onto the plug, do not push the coupler onto the plug.
  • The first phase of the connection should be threaded by hand, without the use of tools. Please note the connection sleeve may seize when dirt and debris accumulate in the threads - wipe away debris with a cloth, compressed air or a brush.
  • The second phase of the connection may require a wrench if the pressure is higher than anticipated.
  • Continue to thread the coupler sleeve onto the plug until the end of the sleeve meets the plug body.
  • To disconnect, use a wrench to break the coupler sleeve free and keep the mating halves aligned during the disconnection process.
Additional Information:
VEP-Series | Interchange Rated Pressure Chart
Body Size Pressure Rating Burst Pressure Max. Pressure Connect3 Max. Pressure Disconnect3 Rated Flow ΔP=21.75 PSI
ISO Working1 Max. Impulse2 Connected Coupler Plug
1/4"" 6,000 PSI
400 Bar		 9,000 PSI
625 Bar		 24,000 PSI
1,650 Bar		 22,000 PSI
1,525 Bar		 22,000 PSI
1,525 Bar		 5,500 PSI
375 Bar		 5,500 PSI
375 Bar		 3.5 GPM 13 L/min
3/8" 5,500 PSI
375 Bar		 8,000 PSI
550 Bar		 22,000 PSI
1,525 Bar		 18,000 PSI
1,250 Bar		 20,000 PSI
1,375 Bar		 4,500 PSI
300 Bar		 4,500 PSI
300 Bar		 10.5 GPM 40" L/min
1/2" 5,500 PSI
375 Bar		 8,000 PSI
550 Bar		 22,000 PSI
1,525 Bar		 18,000 PSI
1,250 Bar		 20,000 PSI
1,375 Bar		 4,500 PSI
300 Bar		 4,500 PSI
300 Bar		 17.5 GPM 66 L/min
3/4" 5,500 PSI
375 Bar		 8,000 PSI
550 Bar		 22,000 PSI
1,525 Bar		 18,000 PSI
1,250 Bar		 20,000 PSI
1,375 Bar		 4,500 PSI
300 Bar		 4,500 PSI
300 Bar		 22.7 GPM 85 L/min
1" 5,500 PSI
375 Bar		 7,500 PSI
525 Bar		 22,000 PSI
1,525 Bar		 14,500 PSI
1,000 Bar		 20,000 PSI
1,375 Bar		 3,625 PSI
250 Bar		 3,625 PSI
250 Bar		 32.5 GPM 123 L/min
1-1/4" 5,000 PSI
350 Bar		 7,000 PSI
475 Bar		 20,000 PSI
1,375 Bar		 14,500 PSI
1,000 Bar		 16,000 PSI
1,100 Bar		 3,625 PSI
250 Bar		 3,625 PSI
250 Bar		 46.4 GPM 174 L/min
1-1/2" 4,500 PSI
300 Bar		 5,800 PSI
400 Bar		 18,000 PSI
1,250 Bar		 12,000 PSI
8,325 Bar		 14,500 PSI
1,000 Bar		 3,000 PSI
200 Bar		 3,000 PSI
200 Bar		 95.0 GPM 360 L/min
2" 4,000 PSI
275 Bar		 5,000 PSI
350 Bar		 18,000 PSI
1,250 Bar		 12,000 PSI
8,325 Bar		 14,500 PSI
1,000 Bar		 3,000 PSI
200 Bar		 3,000 PSI
200 Bar		 172.5 GPM 653 L/min

1 Couplings impulse tested in accordance with ISO18869 for 1,000,000 cycles connected and 100,000 cycles disconnected at 133% of ISO working pressure.
2 Couplings impulse tested in accordance with ISO18869 for 100,000 cycles connected and disconnected at maximum impulse pressure listed.
3 System temperature for maximum connect/disconnect pressure must not exceed 150°F (65°C)

VEP-Series | Coupler (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex
2VEPF2 Socket/Female 1/4" 1/4" - 18 Female NPTF Steel 2.14"
(54.4mm)		 1.49"
(37.8mm)		 22mm
2VEPBF2 Socket/Female 1/4" 1/4" - 19 Female BSPP Steel 2.14"
(54.4mm)		 1.49"
(37.8mm)		 22mm
2VEPOF3 Socket/Female 1/4" 9/16" - 18 Female ORB Steel 2.14"
(54.4mm)		 1.49"
(37.8mm)		 22mm
3VEPF3 Socket/Female 3/8" 3/8" - 18 Female NPTF Steel 2.55"
(64.8mm)		 1.62"
(41.1mm)		 25mm
3VEPBF3 Socket/Female 3/8" 3/8" - 19 Female BSPP Steel 2.55"
(64.8mm)		 1.62"
(41.1mm)		 25mm
3VEPOF4 Socket/Female 3/8" 3/4" - 16 Female ORB Steel 2.77"
(70.4mm)		 1.62"
(41.1mm)		 25mm
3VEPF4 Socket/Female 3/8" 1/2" - 14 Female NPTF Steel 2.77"
(70.4mm)		 1.62"
(41.1mm)		 28mm
3VEPBF4 Socket/Female 3/8" 1/2" - 14 Female BSPP Steel 2.77"
(70.4mm)		 1.62"
(41.1mm)		 28mm
4VEPF4 Socket/Female 1/2" 1/2" - 14 Female NPTF Steel 3.08"
(78.2mm)		 1.98"
(50.3mm)		 30mm
4VEPBF4 Socket/Female 1/2" 1/2" - 14 Female BSPP Steel 3.08"
(78.2mm)		 1.98"
(50.3mm)		 30mm
4VEPOF4 Socket/Female 1/2" 3/4" - 16 Female ORB Steel 3.08"
(78.2mm)		 1.98"
(50.3mm)		 30mm
4VEPOF5 Socket/Female 1/2" 7/8" - 14 Female ORB Steel 3.18"
(80.8mm)		 1.98"
(50.3mm)		 32mm
4VEPF6 Socket/Female 1/2" 3/4" - 14 Female NPTF Steel 3.38"
(85.9mm)		 1.98"
(50.3mm)		 38mm
4VEPBF6 Socket/Female 1/2" 3/4" - 14 Female BSPP Steel 3.38"
(85.9mm)		 1.98"
(50.3mm)		 38mm
4VEPOF6 Socket/Female 1/2" 1-1/16" - 12 Female ORB Steel 3.58"
(90.9mm)		 1.98"
(50.3mm)		 38mm
6VEPF6 Socket/Female 3/4" 3/4" - 14 Female NPTF Steel 3.37"
(85.6mm)		 2.19"
(55.6mm)		 38mm
6VEPBF6 Socket/Female 3/4" 3/4" - 14 Female BSPP Steel 3.37"
(85.6mm)		 2.19"
(55.6mm)		 38mm
6VEPOF6 Socket/Female 3/4" 1-1/16" - 12 Female ORB Steel 3.37"
(85.6mm)		 2.19"
(55.6mm)		 38mm
8VEPF8 Socket/Female 1" 1" - 11-1/2 Female NPTF Steel 3.89"
(98.8mm)		 2.46"
(62.5mm)		 44mm
8VEPF8-SS Socket/Female 1" 1" - 11 Female NPTF 316 Stainless 3.89"
(98.8mm)		 2.46"
(62.5mm)		 44mm
8VEPBF8 Socket/Female 1" 1" - 11 Female BSPP Steel 3.89"
(98.8mm)		 2.46"
(62.5mm)		 44mm
8VEPOF8 Socket/Female 1" 1-5/16" - 12 Female ORB Steel 3.89"
(98.8mm)		 2.46"
(62.5mm)		 44mm
10VEPF10 Socket/Female 1-1/4" 1-1/4" - 11-1/2 Female NPTF Steel 4.40"
(111.8mm)		 2.70"
(68.6mm)		 55mm
10VEPF10 Socket/Female 1-1/4" 1-1/4" - 11-1/2 NPTF Steel 4.40"
(111.8mm)		 2.70"
(68.6mm)		 55mm
10VEPBF10 Socket/Female 1-1/4" 1-1/4" - 11 Female BSPP Steel 4.40"
(111.8mm)		 2.70"
(68.6mm)		 55mm
10VEPOF10 Socket/Female 1-1/4" 1-5/8" - 12 Female ORB Steel 4.40"
(111.8mm)		 2.70"
(68.6mm)		 55mm
12VEPF12 Socket/Female 1-1/2" 1-1/2" - 11-1/2 Female NPTF Steel 5.28"
(134.1mm)		 3.74"
(95.0mm)		 63mm
12VEPBF12 Socket/Female 1-1/2" 1-1/2" - 11 Female BSPP Steel 5.28"
(134.1mm)		 3.74"
(95.0mm)		 63mm
12VEPOF12 Socket/Female 1-1/2" 1-7/8" - 12 Female ORB Steel 5.28"
(134.1mm)		 3.74"
(95.0mm)		 63mm
16VEPF16 Socket/Female 2" 2" - 11-1/2 Female NPTF Steel 9.42"
(239.3mm)		 7.39"
(187.7mm)		 89mm
16VEPBF16 Socket/Female 2" 2" - 11 Female BSPP Steel 9.42"
(239.3mm)		 7.39"
(187.7mm)		 89mm
16VEPOF16 Socket/Female 2" 2-1/2" - 12 Female ORB Steel 9.42"
(239.3mm)		 7.39"
(187.7mm)		 89mm
VEP-Series | Plug (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex
VEP2F2 Plug/Male 1/4" 1/4" - 18 Female NPTF Steel 2.67"
(67.8mm)		 1.35"
(34.3mm)		 22mm
VEP2BF2 Plug/Male 1/4" 1/4" - 19 Female BSPP Steel 2.67"
(67.8mm)		 1.35"
(34.3mm)		 22mm
VEP2OF3 Plug/Male 1/4" 9/16" - 18 Female ORB Steel 2.67"
(67.8mm)		 1.35"
(34.3mm)		 22mm
VEP3F3 Plug/Male 3/8" 3/8" - 18 Female NPTF Steel 3.28"
(83.3mm)		 1.48"
(37.6mm)		 25mm
VEP3BF3 Plug/Male 3/8" 3/8" - 19 Female BSPP Steel 3.28"
(83.3mm)		 1.48"
(37.6mm)		 25mm
VEP3OF4 Plug/Male 3/8" 3/4" - 16 Female ORB Steel 3.50"
(88.9mm)		 1.48"
(37.6mm)		 25mm
VEP3F4 Plug/Male 3/8" 1/2" - 14 Female NPTF Steel 3.50"
(88.9mm)		 1.48"
(37.6mm)		 28mm
VEP3BF4 Plug/Male 3/8" 1/2" - 14 Female BSPP Steel 3.50"
(88.9mm)		 1.48"
(37.6mm)		 28mm
VEP4F4 Plug/Male 1/2" 1/2" - 14 Female NPTF Steel 3.87"
(98.3mm)		 1.86"
(47.2mm)		 30mm
VEP4BF4 Plug/Male 1/2" 1/2" - 14 Female BSPP Steel 3.87"
(98.3mm)		 1.86"
(47.2mm)		 30mm
VEP4OF4 Plug/Male 1/2" 3/4" - 16 Female ORB Steel 3.87"
(98.3mm)		 1.86"
(47.2mm)		 30mm
VEP4OF5 Plug/Male 1/2" 7/8" - 14 Female ORB Steel 3.97"
(100.8mm)		 1.86"
(47.2mm)		 32mm
VEP4F6 Plug/Male 1/2" 3/4" - 14 Female NPTF Steel 4.07"
(103.4mm)		 1.86"
(47.2mm)		 38mm
VEP4BF6 Plug/Male 1/2" 3/4" - 14 Female BSPP Steel 4.07"
(103.4mm)		 1.86"
(47.2mm)		 38mm
VEP4OF6 Plug/Male 1/2" 1-1/16" - 12 Female ORB Steel 4.27"
(108.5mm)		 1.86"
(47.2mm)		 38mm
VEP6F6 Plug/Male 3/4" 3/4" - 14 Female NPTF Steel 4.12"
(104.6mm)		 1.98"
(50.3mm)		 38mm
VEP6BF6 Plug/Male 3/4" 3/4" - 14 Female BSPP Steel 4.12"
(104.6mm)		 1.98"
(50.3mm)		 38mm
VEP6OF6 Plug/Male 3/4" 1-1/16" - 12 Female ORB Steel 4.12"
(104.6mm)		 1.98"
(50.3mm)		 38mm
VEP8F8 Plug/Male 1" 1" - 11-1/2 Female NPTF Steel 4.95"
(125.7mm)		 2.20"
(55.9mm)		 44mm
VEP8F8-SS Plug/Male 1" 1" - 11 Female NPTF 316 Stainless 4.95"
(125.7mm)		 2.20"
(55.9mm)		 44mm
VEP8BF8 Plug/Male 1" 1" - 11 Female BSPP Steel 4.95"
(125.7mm)		 2.20"
(55.9mm)		 44mm
VEP8OF8 Plug/Male 1" 1-5/16" - 12 Female ORB Steel 4.95"
(125.7mm)		 2.20"
(55.9mm)		 44mm
VEP10F10 Plug/Male 1-1/4" 1-1/4" - 11-1/2 Female NPTF Steel 5.43"
(137.9mm)		 2.73"
(69.3mm)		 55mm
VEP10BF10 Plug/Male 1-1/4" 1-1/4" - 11 Female BSPP Steel 5.43"
(137.9mm)		 2.73"
(69.3mm)		 55mm
VEP10OF10 Plug/Male 1-1/4" 1-5/8" - 12 Female ORB Steel 5.43"
(137.9mm)		 2.73"
(69.3mm)		 55mm
VEP12F12 Plug/Male 1-1/2" 1-1/2" - 11-1/2 Female NPTF Steel 6.63"
(168.4mm)		 3.74"
(95.0mm)		 63mm
VEP12BF12 Plug/Male 1-1/2" 1-1/2" - 11 Female BSPP Steel 6.63"
(168.4mm)		 3.74"
(95.0mm)		 63mm
VEP12OF12 Plug/Male 1-1/2" 1-7/8" - 12 Female ORB Steel 6.63"
(168.4mm)		 3.74"
(95.0mm)		 63mm
VEP16F16 Plug/Male 2" 2" - 11-1/2 Female NPTF Steel 11.08"
(281.4mm)		 5.70"
(144.8mm)		 89mm
VEP16BF16 Plug/Male 2" 2" - 11 Female BSPP Steel 11.08"
(281.4mm)		 5.70"
(144.8mm)		 89mm
VEP16OF16 Plug/Male 2" 2-1/2" - 12 Female ORB Steel 11.08"
(281.4mm)		 5.70"
(144.8mm)		 89mm
