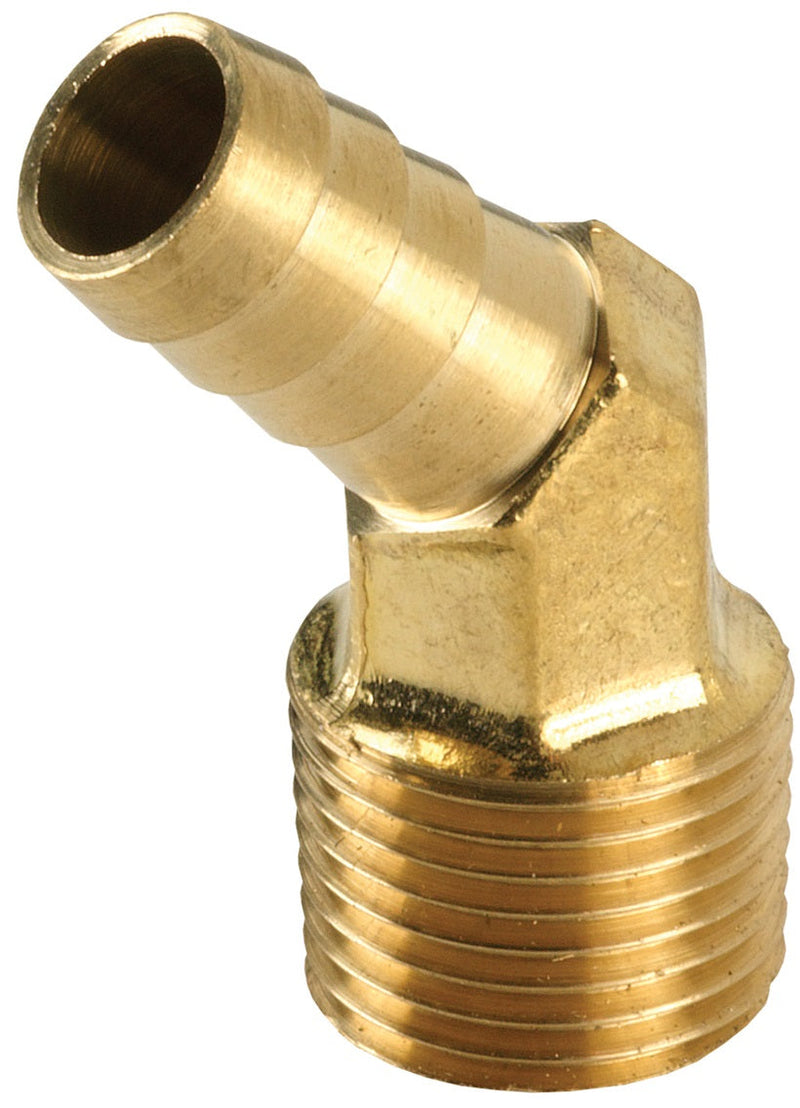

1390804C by Dixon Valve | Hose Barb Insert | 45° Elbow | 1/4" Male NPTF x 1/2" Hose ID | Brass

1390804C by Dixon Valve | Hose Barb Insert | 45° Elbow | 1/4" Male NPTF x 1/2" Hose ID | Brass

Save $0.11 Save $0.11
$3.36
$3.36 - $3.36
$3.36
$3.25
$3.25 - $3.25
$3.25

Dixon Valve
Hose Barb Insert | 45° Elbow | Male NPTF x Hose Barb
Specifications for Variant SKU: 1390804C Dixon
Series: 139 Series
Shape (Orientation): 45 Degree
Ends Configuration: 1/2in Hose Barb, 1/4in Male NPTF
Material(s): Brass
Construction:
  • Brass
  • Forged
Safety Notes:
  • All standard hose fittings are intended for use with hose clamps or crimped ferrules.
Brass Male NPTF Hose I.D.
Previous Part Number Part Number
139-0402 1390402C 1/8" 1/4"
139-0404 1390404C 1/4" 1/4"
139-0602 1390602C 1/8" 3/8"
139-0402 1390604C 1/4" 3/8"
139-0606 1390606C 3/8" 3/8"
139-0804 1390804C 1/4" 1/2"
139-0806 1390806C 3/8" 1/2"
139-0808 1390808C 1/2" 1/2"
139-1208 1391208C 1/2" 3/4"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
