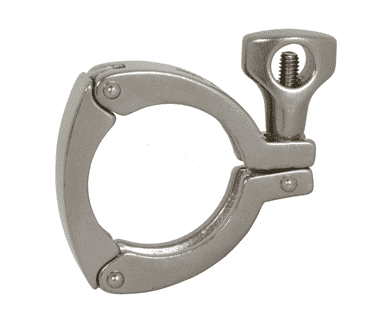

13MHHM-3P200 Dixon 304 Stainless Steel Three Segment Sanitary Clamp - 2" Tube OD

13MHHM-3P200 Dixon Valve 304 Stainless Steel Three Segment Sanitary Clamp - 2" Tube OD

Save $25.74 Save $25.74
$64.35
$64.35 - $64.35
$64.35
$38.61
$38.61 - $38.61
$38.61

Dixon Sanitary Clamps - Three Segment Clamps - 304 Stainless Steel

Specifications for Variant SKU: 13MHHM-3P200 Dixon
Material(s): 304 Stainless Steel
Maximum Clamp I.D.: 2
Features:
  • Wingnut tightened to 25 in. lb. of torque.
Safety Notes:
  • Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to required torques. Tests are done hydrostatically with no water hammer or shock loads.
  • Please note the pressure ratings of the described unions may be above the recommended pipe line operating pressures.
Part Number Tube OD Service Pressure Rating
@ 70 deg. F		 Service Pressure Rating
@ 250 deg. F		 Dimension A
Weight
(Lbs.)
13MHHM-3P100150 1" - 1-1/2" 500 300 2.122 0.8500
13MHHM-3P200 2" 450 250 2.654 0.9500
13MHHM-3P250 2-1/2" 400 200 3.185 1.0715
13MHHM-3P300 3" 350 175 3.717 1.3450
13MHHM-3P400 4" 300 150 4.820 1.6000
13MHHM-3P1200 12" 75 50 12.740 4.8600
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
