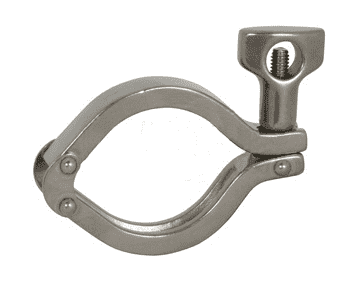

13MHHM-DP400 Dixon 304 Stainless Steel Double Pin Heavy Duty Sanitary Clamp - 4" Tube OD

13MHHM-DP400 Dixon Valve 304 Stainless Steel Double Pin Heavy Duty Sanitary Clamp - 4" Tube OD

Save $13.97 Save $13.97
$34.92
$34.92 - $34.92
$34.92
$20.95
$20.95 - $20.95
$20.95

Dixon Sanitary Clamps - Double Pin Heavy Duty Clamps - 304 Stainless Steel

Specifications for Variant SKU: 13MHHM-DP400 Dixon
Material(s): 304 Stainless Steel
Maximum Clamp I.D.: 4
Features:
  • Wingnut tightened to 25 in. lb. of torque.
Safety Notes:
  • Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to required torques. Tests are done hydrostatically with no water hammer or shock loads.
  • Please note the pressure ratings of the described unions may be above the recommended pipe line operating pressures.
Part Number Tube OD Service Pressure Rating @ 70 deg. F Service Pressure Rating @ 250 deg. F Dimension A Weight (Lbs.)
13MHHM-DP100150 1" - 1-1/2" 500 300 2.122 0.6500
13MHHM-DP200 2" 450 250 2.654 0.7700
13MHHM-DP250 2-1/2" 400 200 3.185 0.8800
13MHHM-DP300 3" 350 175 3.717 0.9700
13MHHM-DP400 4" 300 150 4.820 1.1900
13MHHM-DP1000 10" 100 50 10.740 3.7100
