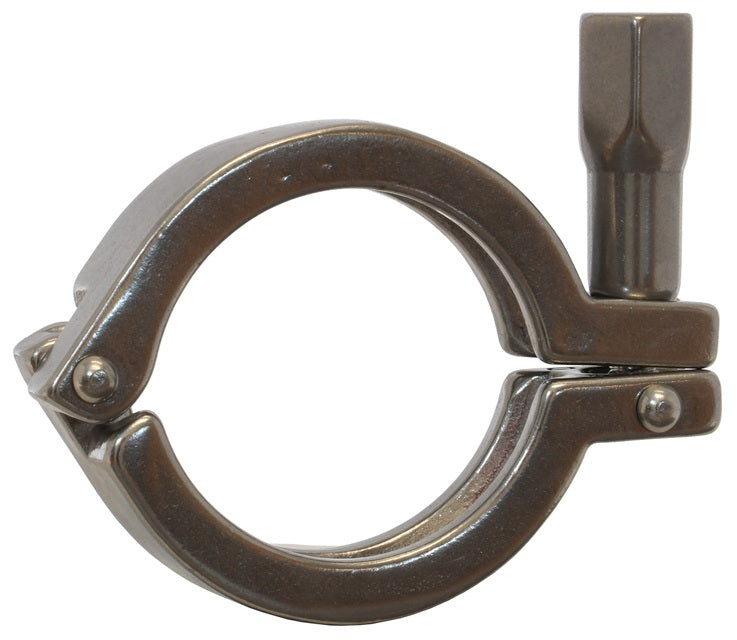

13MHHM500WNH Dixon Valve 304 Stainless Steel Single Pin Heavy Duty Sanitary Clamp with Hex Nut - 5" Tube OD

13MHHM500WNH Dixon Valve 304 Stainless Steel Single Pin Heavy Duty Sanitary Clamp with Hex Nut - 5" Tube OD

Save $15.75 Save $15.75
$39.38
$39.38 - $39.38
$39.38
$23.63
$23.63 - $23.63
$23.63

Dixon Sanitary Fittings - Single Pin Heavy Duty Sanitary Clamp with Hex Nut - 304 Stainless Steel

Wingnut tightened to 25 in. lb. of torque
Specifications for Variant SKU: 13MHHM500WNH Dixon
Material(s): 304 Stainless Steel
Maximum Clamp I.D.: 5
Part Number Size Pressure Rating Weight
(Lbs.)
13MHHM50-75WNH 1/2" - 3/4" 1500 PSI at 70°F
1200 PSI at 250°F		 0.3110
13MHHM100150WNH 1" - 1-1/2" 500 PSI at 70°F
300 PSI at 250°F		 0.6400
13MHHM200WNH 2" 450 PSI at 70°F
250 PSI at 250°F		 0.7600
13MHHM250WNH 2-1/2" 400 PSI at 70°F
200 PSI at 250°F		 0.8840
13MHHM300WNH 3" 350 PSI at 70°F
175 PSI at 250°F		 0.9800
13MHHM400WNH 4" 300 PSI at 70°F
150 PSI at 250°F		 1.2000
13MHHM500WNH 5" 225 PSI at 70°F
100 PSI at 250°F		 1.3900
13MHHM600WNH 6" 150 PSI at 70°F
75 PSI at 250°F		 2.2500
13MHHM800WNH 8" 100 PSI at 70°F
50 PSI at 250°F		 -

All ratings shown are dependent upon related components within the system and proper installation.
