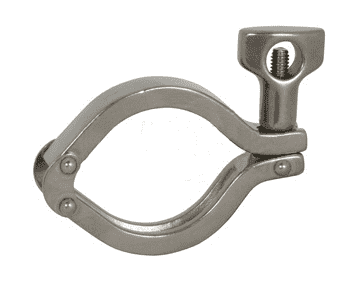

13MHHM-DP100150 Dixon 304 Stainless Steel Double Pin Heavy Duty Sanitary Clamp - 1" - 1-1/2" Tube OD

13MHHM-DP100150 Dixon Valve 304 Stainless Steel Double Pin Heavy Duty Sanitary Clamp - 1" - 1-1/2" Tube OD

Save $0.85 Save $0.85
$9.30
$9.30 - $9.30
$9.30
$8.45
$8.45 - $8.45
$8.45

Dixon Sanitary Clamps - Double Pin Heavy Duty Clamps - 304 Stainless Steel

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 13MHHM-DP100150 Dixon
Material(s): 304 Stainless Steel
Minimum Clamp I.D.: 1
Maximum Clamp I.D.: 1.5
Features:
  • Wingnut tightened to 25 in. lb. of torque.
Safety Notes:
  • Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to required torques. Tests are done hydrostatically with no water hammer or shock loads.
  • Please note the pressure ratings of the described unions may be above the recommended pipe line operating pressures.
Part Number Tube OD Service Pressure Rating @ 70 deg. F Service Pressure Rating @ 250 deg. F Dimension A Weight (Lbs.)
13MHHM-DP100150 1" - 1-1/2" 500 300 2.122 0.6500
13MHHM-DP200 2" 450 250 2.654 0.7700
13MHHM-DP250 2-1/2" 400 200 3.185 0.8800
13MHHM-DP300 3" 350 175 3.717 0.9700
13MHHM-DP400 4" 300 150 4.820 1.1900
13MHHM-DP1000 10" 100 50 10.740 3.7100
