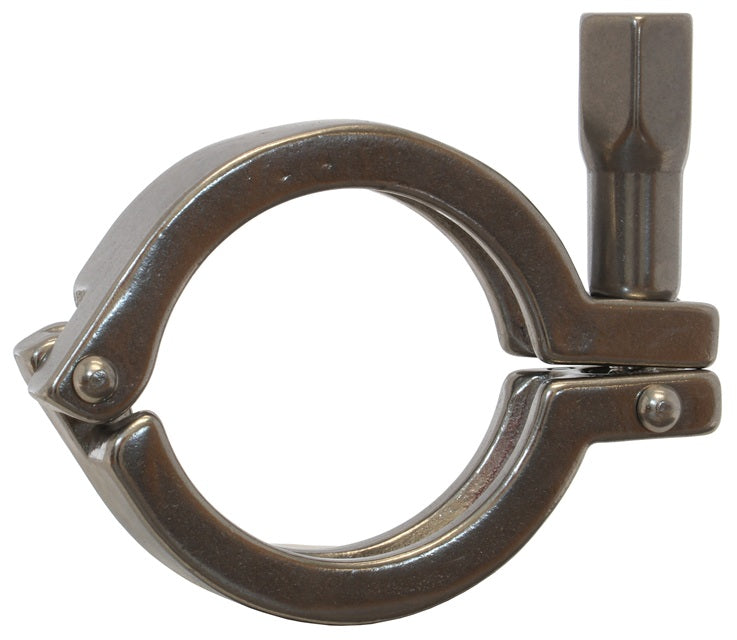

13MHHM800WNH Dixon Valve 304 Stainless Steel Single Pin Heavy Duty Sanitary Clamp with Hex Nut - 8" Tube OD

13MHHM800WNH Dixon Valve 304 Stainless Steel Single Pin Heavy Duty Sanitary Clamp with Hex Nut - 8" Tube OD

Save $36.03 Save $36.03
$90.07
$90.07 - $90.07
$90.07
$54.04
$54.04 - $54.04
$54.04

Dixon Sanitary Fittings - Single Pin Heavy Duty Sanitary Clamp with Hex Nut - 304 Stainless Steel

Wingnut tightened to 25 in. lb. of torque
Specifications for Variant SKU: 13MHHM800WNH Dixon
Material(s): 304 Stainless Steel
Maximum Clamp I.D.: 8
Part Number Size Pressure Rating Weight
(Lbs.)
13MHHM50-75WNH 1/2" - 3/4" 1500 PSI at 70°F
1200 PSI at 250°F		 0.3110
13MHHM100150WNH 1" - 1-1/2" 500 PSI at 70°F
300 PSI at 250°F		 0.6400
13MHHM200WNH 2" 450 PSI at 70°F
250 PSI at 250°F		 0.7600
13MHHM250WNH 2-1/2" 400 PSI at 70°F
200 PSI at 250°F		 0.8840
13MHHM300WNH 3" 350 PSI at 70°F
175 PSI at 250°F		 0.9800
13MHHM400WNH 4" 300 PSI at 70°F
150 PSI at 250°F		 1.2000
13MHHM500WNH 5" 225 PSI at 70°F
100 PSI at 250°F		 1.3900
13MHHM600WNH 6" 150 PSI at 70°F
75 PSI at 250°F		 2.2500
13MHHM800WNH 8" 100 PSI at 70°F
50 PSI at 250°F		 -

All ratings shown are dependent upon related components within the system and proper installation.

Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
