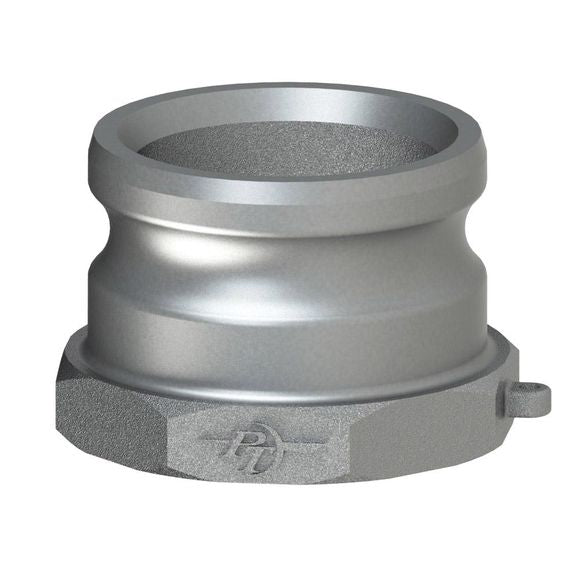

1400120 (20A) by PT-Coupling | Cam & Groove Adapter | Type A | 2" Adapter x 2" Female NPT | 316 Stainless Steel

Name: 1400120 (20A) by PT-Coupling | Cam & Groove Adapter | Type A | 2" Adapter x 2" Female NPT | 316 Stainless Steel
Brand: PT-Coupling
SKU: 1400120 PT-Coupling
Price: 43.4 USD
Availability: InStock

Save $25.62

$69.02

$69.02 - $69.02

$69.02

$43.40

$43.40 - $43.40

$43.40

PT Coupling
Cam and Groove (Camlock) Adapter | Type A | Adapter x Female NPT Thread | 316 Stainless Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 1400120 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type A
Ends Configuration:	2in Male Cam & Groove, 2in Female NPT
Material(s):	316 Stainless Steel

Overview:
PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features:
Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA


Part Name	Item #	Adapter Size	Thread (Female NPT)	Overall Length (C)	Inside Diameter (E)	Across Corners (F)	Chain Lug Extension (G)	Engagement Length	Max. Allowable Working Press. (PSI)*	Weight
E05A	1400101	1/2"	1/2"	1.60"	0.53"	1.12"	-	1.03"	250 PSI	0.17 lbs.
1/2A	1400105	3/4"	1/2"	1.62"	0.66"	1.49"	-	0.97"	250 PSI	0.36 lbs.
07A	1400107	3/4"	3/4"	1.62"	0.75"	1.49"	-	0.97"	250 PSI	0.25 lbs.
10A	1400110	1"	1"	1.91"	0.88"	1.76"	0.34	1.19"	250 PSI	0.42 lbs.
12A	1400112	1-1/4"	1-1/4"	2.16"	1.04"	2.19"	0.34"	1.44"	250 PSI	0.664 lbs.
15A	1400115	1-1/2"	1-1/2"	2.29"	1.35"	2.44"	0.33"	1.48"	250 PSI	0.98 lbs.
20A	1400120	2"	2"	2.54"	1.72"	2.92"	0.31"	1.75"	250 PSI	1.135 lbs.
25A	1400125	2-1/2"	2-1/2"	2.75"	2.14"	3.49"	0.27"	1.75"	200 PSI	0.772 lbs.
30A	1400130	3"	3"	2.84"	2.80"	4.22"	0.44"	1.84"	200 PSI	2.37 lbs.
40A	1400140	4"	4"	3.16"	3.78"	5.41"	0.39"	1.87"	150 PSI	4.4 lbs.
50A	1400150	5"	5"	3.22"	4.79"	6.49"	0.35"	1.97"	75 PSI	5.294 lbs.
60A	1400160	6"	6"	3.35"	5.90"	7.70"	0.60"	2.19"	75 PSI	6.76 lbs.
80A	1400180	8"	8"	4.50"	7.80"	10.23"	0.60"	2.15"	50 PSI	16.335 lbs.
100A	1400190	10"	10"	4.50"	10.10"	12.79"	0.60"	2.55	50 PSI	25.88 lbs.
120A	1400192	12"	12"	4.38"	12.00".	14.75"	-	2.55"	50 PSI	27.63 lbs.

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
