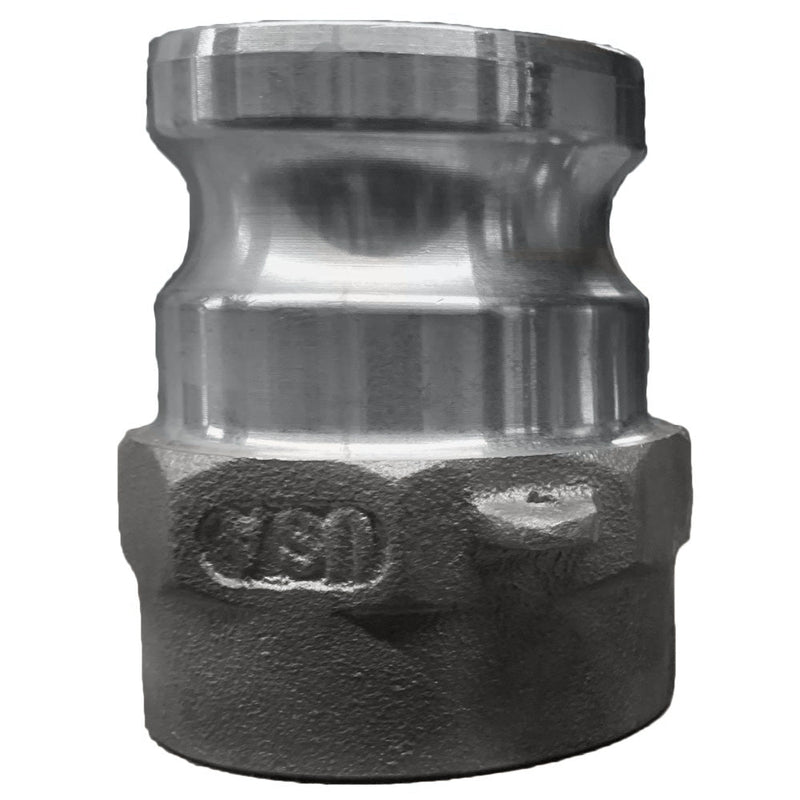

1400125H (25AHD) by PT-Coupling | Heavy Duty Cam & Groove Adapter | Type AHD | 2-1/2" Adapter x 2-1/2" Female NPT | 316 Stainless Steel | Buna-N Seal

Save $138.71

$373.68

$373.68 - $373.68

$373.68

$234.97

$234.97 - $234.97

$234.97

PT Coupling
Heavy Duty Cam & Groove (Camlock) Adapter | Type AHD | Adapter x Female NPT | 316 Stainless Steel | Buna-N Seal

Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.

Made in the USA

Specifications for Variant SKU: 1400125H PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type A
Ends Configuration:	2-1/2in Male Cam & Groove, 2-1/2in Female NPT
Material(s):	316 Stainless Steel
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA

Part Name	Item #	Heavy Duty Adapter	Female NPT Thread	Max. Allowable Working Press. (PSI)*
15AHD	1400115H	1-1/2"	1-1/2"	500 PSI
20AHD	64762000	2"	2"	500 PSI
25AHD	1400125H	2-1/2"	2-1/2"	400 PSI
30AHD	1400130H	3"	3"	400 PSI
40AHD	1400140H	4"	4"	300 PSI
60AHD	1400160H	6"	6"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
