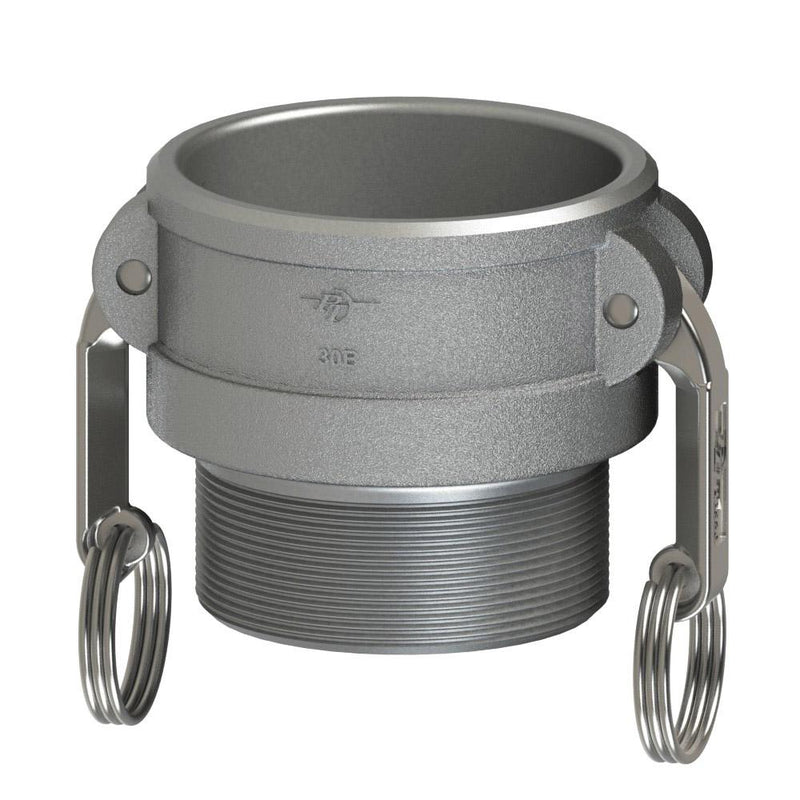

1400210 (10B) by PT-Coupling | Cam & Groove Adapter | Type B | 1" Coupler x 1" Male NPT | 316 Stainless Steel | Buna-N Seal

Save $6.76

$60.83

$60.83 - $60.83

$60.83

$54.07

$54.07 - $54.07

$54.07

PT Coupling
Cam and Groove (Camlock) Adapter | Type B | Coupler x Male NPT Thread | 316 Stainless Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Quantity

Specifications for Variant SKU: 1400210 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type B
Ends Configuration:	1in Female Cam & Groove, 1in Male NPT
Material(s):	316 Stainless Steel
Seal Material(s):	Buna-N/Nitrile

Overview:
PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
8, 10, and 12 inch couplers have a 4-cam design with the STA-LOK® positive locking feature. Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA


Part Name	Item #	Coupler Size	Thread (Male NPT)	O.D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Exposed Length (D)	Inside Diameter (E)	Engagement Length	Max. Allowable Working Press. (PSI)*	Weight
E05B	1400201	1/2"	1/2"	4.21"	1.82"	2.10"	1.25"	0.56"	1.03"	250 PSI	0.365 lbs.
1/2B	1400205	3/4"	1/2"	4.51"	2.11"	2.10"	1.25"	0.56"	0.97"	250 PSI	0.465 lbs.
07B	1400207	3/4"	3/4"	4.51"	2.11"	2.10"	1.25"	0.78"	0.97"	250 PSI	0.505 lbs.
10B	1400210	1"	1"	5.10"	2.44"	2.50"	1.56"	0.97"	1.19"	250 PSI	0.724 lbs.
12B	1400212	1-1/4"	1-1/4"	6.86"	3.26"	2.89"	1.84"	1.25"	1.44"	250 PSI	1.381 lbs.
15B	1400215	1-1/2"	1-1/2"	7.16"	3.56"	2.93"	1.88"	1.50"	1.48"	250 PSI	1.438 lbs.
20B	1400220	2"	2"	7.54"	3.94"	3.20"	2.15"	1.88"	1.75"	250 PSI	1.988 lbs.
25B	1400225	2-1/2"	2-1/2"	8.03"	4.43"	3.63"	2.18"	2.38"	1.75"	200 PSI	2.873 lbs.
30B	1400230	3"	3"	9.56"	5.46"	3.82"	2.27"	2.88"	1.84"	200 PSI	4.117 lbs.
40B	1400240	4"	4"	10.66"	6.56"	4.00"	2.34"	3.60"	1.87"	150 PSI	6.896 lbs.
50B	1400250	5"	5"	11.67"	7.57"	4.20"	2.44"	4.50"	1.97"	75 PSI	9.631 lbs.
60B	1400260	6"	6"	16.26"	10.16"	4.52"	2.62"	5.60"	2.19"	75 PSI	13.395 lbs.
80B	1400280**	8"	8"	18.23"	12.13"	4.80"	2.72"	7.50"	2.15"	50 PSI	20.21 lbs.

**8, 10, and 12 inch couplers have a 4-cam design with the STA-LOK® positive locking feature.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
