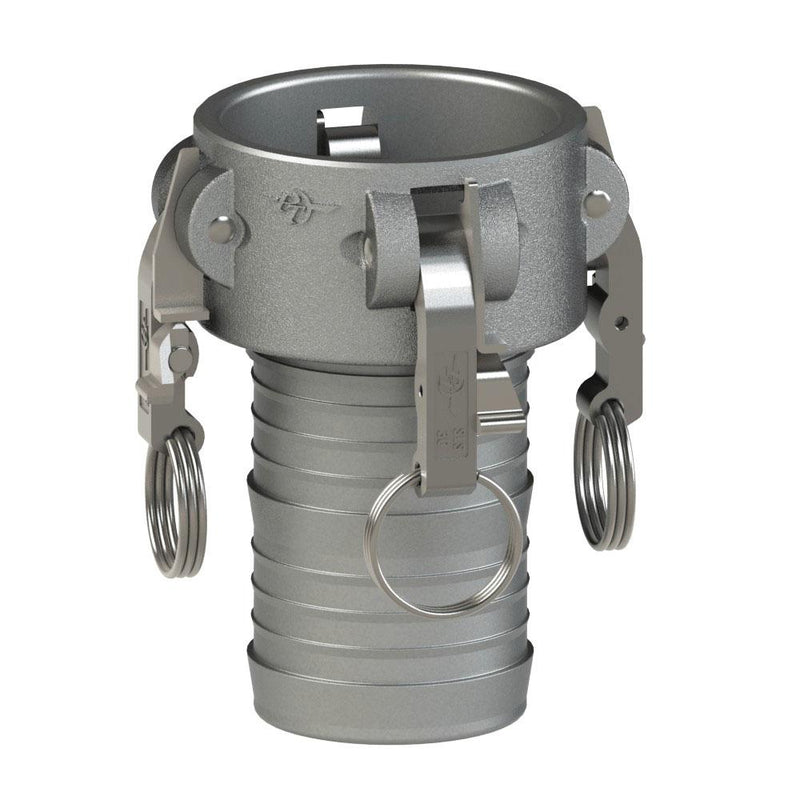

1400340H (40CHD) by PT-Coupling | Heavy Duty Cam & Groove Fitting | Type CHD | 4" Coupler x 4" Hose Shank | 316 Stainless Steel | Buna-N Seal

Save $249.43

$671.92

$671.92 - $671.92

$671.92

$422.49

$422.49 - $422.49

$422.49

PT Coupling
Heavy Duty Cam & Groove (Camlock) Fitting | Type CHD | Coupler x Hose Shank | 316 Stainless Steel | Buna-N Seal

Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.

Made in the USA

Specifications for Variant SKU: 1400340H PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type C
Ends Configuration:	4in Female Cam & Groove, 4in Hose Barb
Material(s):	316 Stainless Steel
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. 2-1/2" and smaller couplers come standard with 2 cam arms while 3" and larger couplers come with 4 STA-LOK® II cam arms. Made in the USA

Part Name	Item #	Heavy Duty Coupler	Hose Shank Size	Max. Allowable Working Press. (PSI)*
30CHD	1400330H	3"	3"	400 PSI
40CHD	1400340H	4"	4"	300 PSI
60CHD	1400360H	6"	6"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
