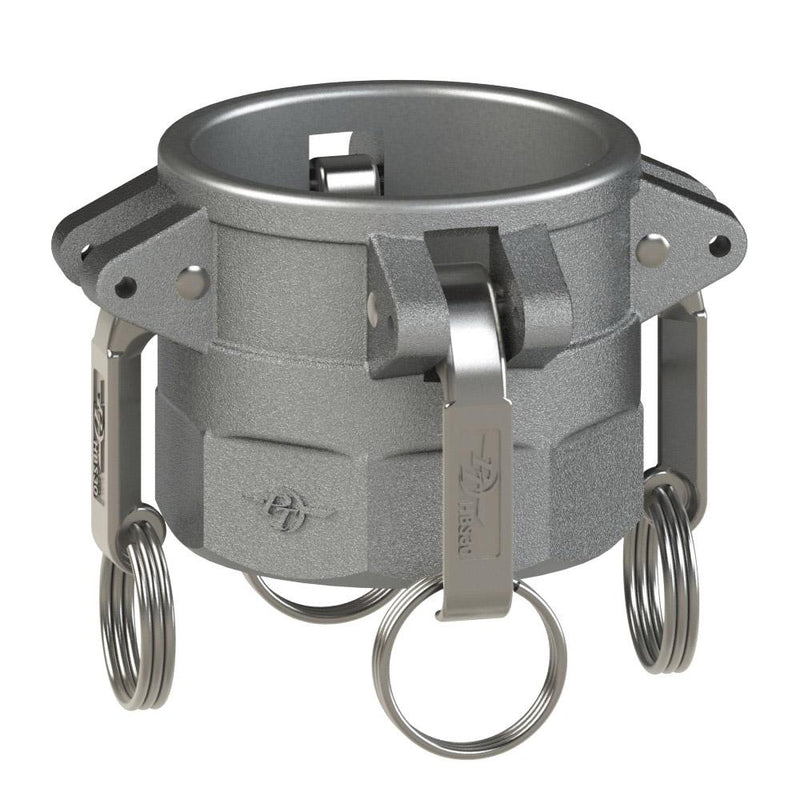

14004404CM (40DHD) by PT-Coupling | Heavy Duty Cam & Groove Adapter | Type DHD | 4" Coupler x 4" Female NPT | 316 Stainless Steel | Buna-N Seal

Save $72.72

$591.53

$591.53 - $591.53

$591.53

$518.81

$518.81 - $518.81

$518.81

PT Coupling
Heavy Duty Cam & Groove (Camlock) Adapter | Type DHD | Coupler x Female NPT | 316 Stainless Steel | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 14004404CM PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type D
Ends Configuration:	4in Female Cam & Groove, 4in Female NPT
Material(s):	316 Stainless Steel
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. 2-1/2" and smaller couplers come standard with 2 cam arms while 3" and larger couplers come with 4 STA-LOK® II cam arms. Made in the USA

Part Name	Item #	Heavy Duty Coupler	Female NPT Thread	Max. Allowable Working Press. (PSI)*
20DHD	64782000	2"	2"	500 PSI
25DHD	1400425HD	2-1/2"	2-1/2"	400 PSI
30DHD	14004304CM	3"	3"	400 PSI
40DHD	14004404CM	4"	4"	300 PSI
60DHD	14004604CM	6"	6"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
