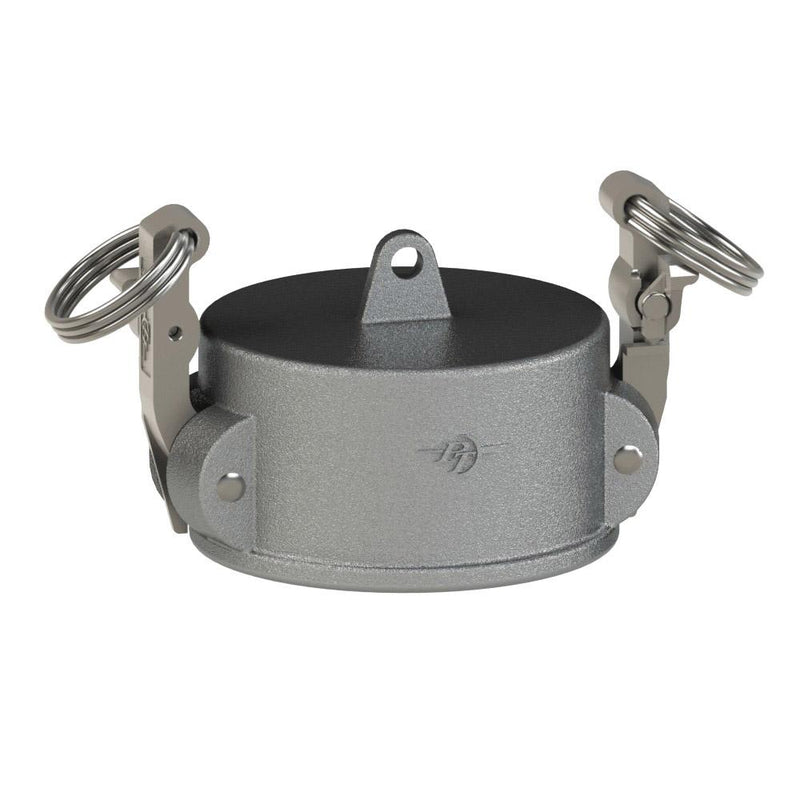

1401125L2 (25V SLII) by PT-Coupling | STA-LOK® II Cam & Groove Dust Cap | Type V | 2-1/2" Coupler | 316 Stainless Steel

Name: 1401125L2 (25V SLII) by PT-Coupling | STA-LOK® II Cam & Groove Dust Cap | Type V | 2-1/2" Coupler | 316 Stainless Steel
Brand: PT-Coupling
SKU: 1401125L2 PT-Coupling
Price: 112.76 USD
Availability: InStock

Save $14.10

$126.86

$126.86 - $126.86

$126.86

$112.76

$112.76 - $112.76

$112.76

PT Coupling
STA-LOK® II Cam & Groove (Camlock) Dust Cap | Type V | 316 Stainless Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Quantity

Specifications for Variant SKU: 1401125L2 PT-Coupling
Series:	STA-LOK II
Cam Type:	Type DC
Ends Configuration:	2-1/2in Female Cam & Groove
Material(s):	316 Stainless Steel

Overview:
STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA


Part Name	Item #	Coupler Size	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Chain Lug Extension (G)	Max. Allowable Working Press. (PSI)*
10V SLII	1401110L2	1"	5.10"	2.44"	1.60"	0.62"	250 PSI
12V SLII	1401112L2	1-1/4"	6.86"	3.26"	1.89"	0.60"	250 PSI
15V SLII	1401115L2	1-1/2"	7.16"	3.56"	1.96"	0.86"	250 PSI
20V SLII	1401120L2	2"	7.54"	3.94"	2.25"	0.76"	250 PSI
25V SLII	1401125L2	2-1/2"	8.03"	4.43"	2.28"	0.90"	200 PSI
30V SLII	1401130L2	3"	9.56"	5.46"	2.27"	1.03"	200 PSI
40V SLII	1401140L2	4"	10.66"	6.56"	2.34"	0.99"	150 PSI
50V SLII	1401150L2	5"	11.67"	7.57"	2.44"	1.15"	75 PSI
60V SLII	1401160L2	6"	16.26"	10.16"	2.76"	1.14"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
