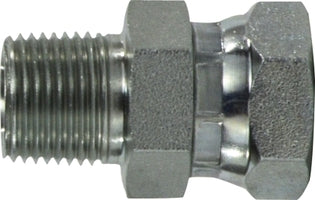

14041616 (1404-16-16) Midland Hydraulic Male Swivel Adapter - 1" Male Pipe x 1" Female NPSM - Steel

14041616 by Midland | Hydraulic Male Swivel | 1" Male Pipe x 1" Female NPSM | Adapter | Steel

Save $5.87 Save $5.87
$14.68
$14.68 - $14.68
$14.68
$8.81
$8.81 - $8.81
$8.81

Midland Industries
Hydraulic Adapters: Male Swivel Adapter - Male Pipe x Female NPSM - Steel

Inventory @ Manufacturers Warehouse: 1257 Units
Specifications for Variant SKU: 14041616 Midland
Shape (Orientation): Straight
Ends Configuration: 1in Male NPT, 1in Female NPSM
Material(s): Steel
Applicable Specs & Approvals: Applicable SAE Standards
Specifications:
  • SAE 140130
Technical Info:
Crossover Series:
1404 2045R 1210 9205R 0107
Part Number Male Pipe
(1)		 Female NPSM
(2)
140422
(1404-2-2)		 1/8" 1/8"
140442
(1404-4-2)		 1/4" 1/8"
140444
(1404-4-4)		 1/4" 1/4"
140464 3/8" 1/4"
140466
(1404-6-6)		 3/8" 3/8"
140468
(1404-6-8)		 3/8" 1/2"
140484
(1404-8-4)		 1/2" 1/4"
140486
(1404-8-6)		 1/2" 3/8"
140488
(1404-8-8)		 1/2" 1/2"
1404812 1/2" 3/4"
1404126 3/4" 3/8"
1404128
(1404-12-8)		 3/4" 1/2"
14041212
(1404-12-12)		 3/4" 3/4"
14041216
(1404-12-16)		 3/4" 1"
14041612
(1404-16-12)		 1" 3/4"
14041616
(1404-16-16)		 1" 1"
14041620 1" 1-1/4"
14042024 1-1/4" 1-1/2"
14042016
(1404-20-16)		 1-1/4" 1"
14042020
(1404-20-20)		 1-1/4" 1-1/4"
14042424
(1404-24-24)		 1-1/2" 1-1/2"
14043232
(1404-32-32)		 2" 2"
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.

Shop Parts by Midland Industries
