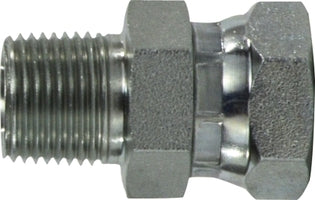

140488 (1404-8-8) Midland Hydraulic Male Swivel Adapter - 1/2" Male Pipe x 1/2" Female NPSM - Steel

140488 by Midland | Hydraulic Male Swivel | 1/2" Male Pipe x 1/2" Female NPSM | Adapter | Steel

Save $1.93 Save $1.93
$4.83
$4.83 - $4.83
$4.83
$2.90
$2.90 - $2.90
$2.90

Midland Industries
Hydraulic Adapters: Male Swivel Adapter - Male Pipe x Female NPSM - Steel

Inventory @ Manufacturers Warehouse: 1503 Units
Specifications for Variant SKU: 140488 Midland
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPT, 1/2in Female NPSM
Material(s): Steel
Applicable Specs & Approvals: Applicable SAE Standards
Specifications:
  • SAE 140130
Technical Info:
Crossover Series:
1404 2045R 1210 9205R 0107
Part Number Male Pipe
(1)		 Female NPSM
(2)
140422
(1404-2-2)		 1/8" 1/8"
140442
(1404-4-2)		 1/4" 1/8"
140444
(1404-4-4)		 1/4" 1/4"
140464 3/8" 1/4"
140466
(1404-6-6)		 3/8" 3/8"
140468
(1404-6-8)		 3/8" 1/2"
140484
(1404-8-4)		 1/2" 1/4"
140486
(1404-8-6)		 1/2" 3/8"
140488
(1404-8-8)		 1/2" 1/2"
1404812 1/2" 3/4"
1404126 3/4" 3/8"
1404128
(1404-12-8)		 3/4" 1/2"
14041212
(1404-12-12)		 3/4" 3/4"
14041216
(1404-12-16)		 3/4" 1"
14041612
(1404-16-12)		 1" 3/4"
14041616
(1404-16-16)		 1" 1"
14041620 1" 1-1/4"
14042024 1-1/4" 1-1/2"
14042016
(1404-20-16)		 1-1/4" 1"
14042020
(1404-20-20)		 1-1/4" 1-1/4"
14042424
(1404-24-24)		 1-1/2" 1-1/2"
14043232
(1404-32-32)		 2" 2"
