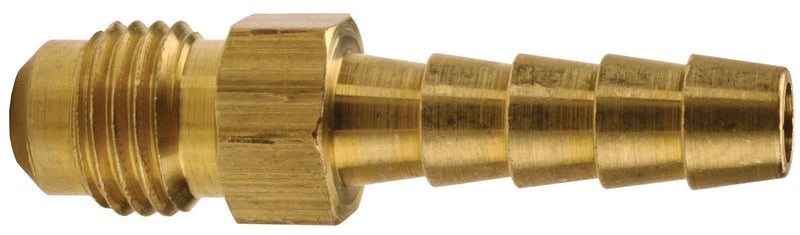

1420307C by Dixon Valve | Hose Barb Insert | Male 45° SAE | 1/4" Tube OD | 3/16" Hose ID x 1/4" Male SAE 45° Flare | Brass

1420307C by Dixon Valve | Hose Barb Insert | Male 45° SAE | 1/4" Tube OD | 3/16" Hose ID x 1/4" Male SAE 45° Flare | Brass

Save $1.39 Save $1.39
$3.47
$3.47 - $3.47
$3.47
$2.08
$2.08 - $2.08
$2.08

Dixon Valve
Hose Barb Insert | Male 45° SAE | Hose Barb x Male UNF | Brass
Specifications for Variant SKU: 1420307C Dixon
Series: 142 Series
Shape (Orientation): Straight
Ends Configuration: 3/16in Hose Barb, 1/4in Male SAE 45 Degree
Material(s): Brass
Construction:
  • Brass
Safety Notes:
  • All standard hose fittings are intended for use with hose clamps or crimped ferrules.
Brass Hose I.D. Tube O.D Male UNF
Previous Part Number Part Number
142-0307 1420307C 3/16" 1/4" 7/16"-20
142-0407 1420407C 1/4" 1/4" 7/16"-20
142-0410 1420410C 1/4" 3/8" 5/8"-18
142-0508 1420508C 5/16" 5/16" 1/2"-20
142-0610 1420610C 3/8" 3/8" 5/8"-18
142-0612 1420612C 3/8" 1/2" 3/4"-16
142-0812 1420812C 1/2" 1/2" 3/4"-16
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
