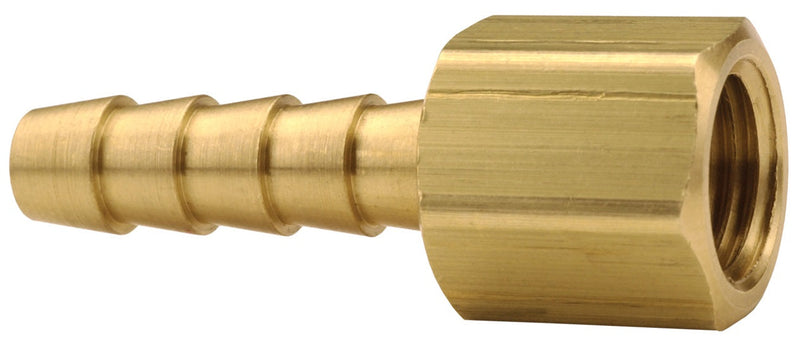

1430407K by Dixon Valve | Hose Barb Insert | Female 45° SAE/37° JIC Swivel | 1/4" Tube OD | 1/4" Hose ID x 1/4" Female SAE 45° Flare | Brass

Save $1.23

$3.07

$3.07 - $3.07

$3.07

$1.84

$1.84 - $1.84

$1.84

Dixon Valve
Hose Barb Insert | Female 45° SAE/37° JIC Swivel | Hose Barb x Female UNF

Specifications for Variant SKU: 1430407K Dixon
Series:	143 Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Hose Barb, 1/4in Female SAE 45 Degree
Material(s):	Brass
Applicable Specs & Approvals:	Swivel
Compatible with the following Series:	GS Black Multipurpose Air and Water Hose \| GS Red Multipurpose Air and Water Hose

Construction:
Brass Dual angle seat.
Safety Notes:
All standard hose fittings are intended for use with hose clamps or crimped ferrules.

Previous Part Number	Brass Part Number	Hose I.D.	Tube O.D	Female UNF
143-0307	1430307K	3/16"	1/4"	7/16"-20
142-0407	1430407K	1/4"	1/4"	7/16"-20
143-0408	1430408K	1/4"	5/16"	1/2"-20
143-0508	1430508K	5/16"	5/16"	1/2"-20
143-0612	1430612K	3/8"	1/2"	3/4"-16
143-0812	1430812K	1/2"	1/2"	3/4"-16
143-0814	1430814K	1/2"	5/8"	7/8"-14

* NSF®/ANSI 61 certified Lead-Free Brass <=0.25% lead, Alloy C2745.
