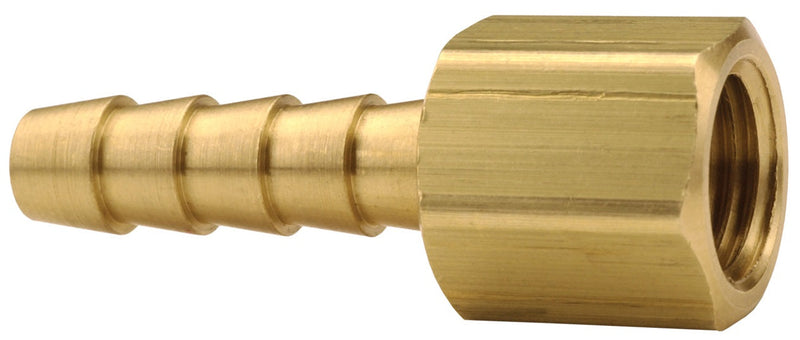

1430814K by Dixon Valve | Hose Barb Insert | Female 45° SAE/37° JIC Swivel | 5/8" Tube OD | 1/2" Hose ID x 5/8" Female SAE 45° Flare | Brass

Save $3.69

$9.22

$9.22 - $9.22

$9.22

$5.53

$5.53 - $5.53

$5.53

Dixon Valve
Hose Barb Insert | Female 45° SAE/37° JIC Swivel | Hose Barb x Female UNF

Specifications for Variant SKU: 1430814K Dixon
Series:	143 Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Hose Barb, 5/8in Female SAE 45 Degree
Material(s):	Brass
Applicable Specs & Approvals:	Swivel
Compatible with the following Series:	GS Black Multipurpose Air and Water Hose \| GS Red Multipurpose Air and Water Hose

Construction:
Brass Dual angle seat.
Safety Notes:
All standard hose fittings are intended for use with hose clamps or crimped ferrules.

Previous Part Number	Brass Part Number	Hose I.D.	Tube O.D	Female UNF
143-0307	1430307K	3/16"	1/4"	7/16"-20
142-0407	1430407K	1/4"	1/4"	7/16"-20
143-0408	1430408K	1/4"	5/16"	1/2"-20
143-0508	1430508K	5/16"	5/16"	1/2"-20
143-0612	1430612K	3/8"	1/2"	3/4"-16
143-0812	1430812K	1/2"	1/2"	3/4"-16
143-0814	1430814K	1/2"	5/8"	7/8"-14

* NSF®/ANSI 61 certified Lead-Free Brass <=0.25% lead, Alloy C2745.
