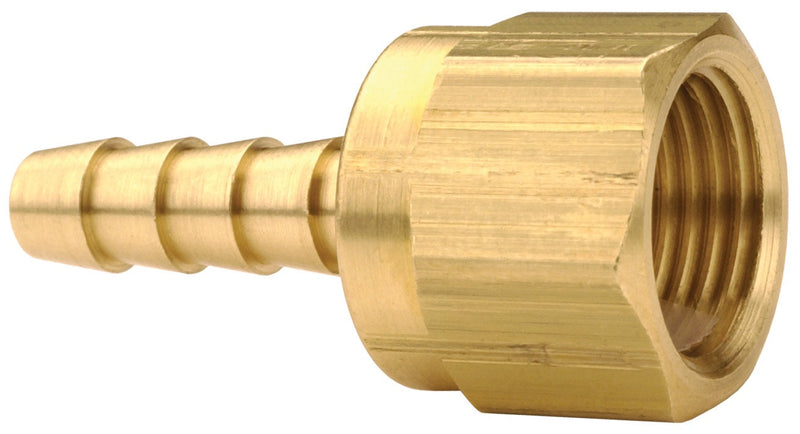

1441217K by Dixon Valve | Hose Barb Insert | Female 45° SAE Swivel | 3/4" Tube OD | 3/4" Hose ID x 3/4" Female SAE 45° Flare | Brass

1441217K by Dixon Valve | Hose Barb Insert | Female 45° SAE Swivel | 3/4" Tube OD | 3/4" Hose ID x 3/4" Female SAE 45° Flare | Brass

Save $0.63 Save $0.63
$8.28
$8.28 - $8.28
$8.28
$7.65
$7.65 - $7.65
$7.65

Dixon Valve
Hose Barb Insert | Female 45° SAE Swivel | Hose Barb x Female UNF
Specifications for Variant SKU: 1441217K Dixon
Series: 144 Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose ID, 3/4in Female SAE 45° Flare
Material(s): Brass
Applicable Specs & Approvals: Swivel
Construction:
  • Brass
Safety Notes:
  • All standard hose fittings are intended for use with hose clamps or crimped ferrules.
Previous Part Number Brass
Part Number		 Hose I.D. Tube O.D Female UNF
144-0306 1440306K 3/16" 3/16" 3/8"-24
144-0410 1440410K 1/4" 3/8" 5/8"-18
144-0510 1440510K 5/16" 3/8" 5/8"-18
144-0610 1440610K 3/8" 3/8" 5/8"-18
144-0812 1440812K 1/2" 1/2" 3/4"-16
144-1217 1441217K* 3/4" 3/4" 1-1/16"-14

* Notch in nut for SAE identification.
