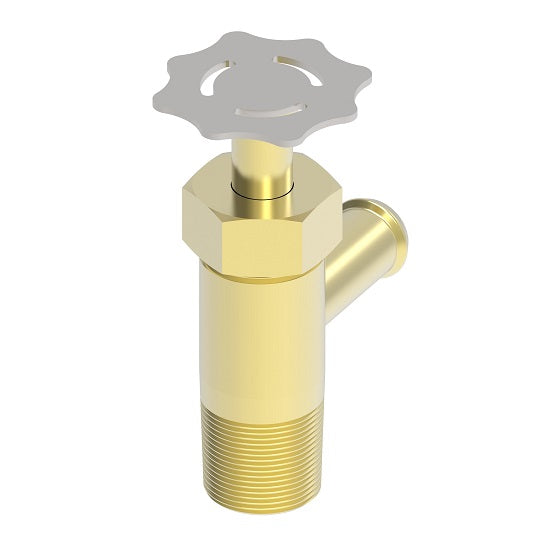

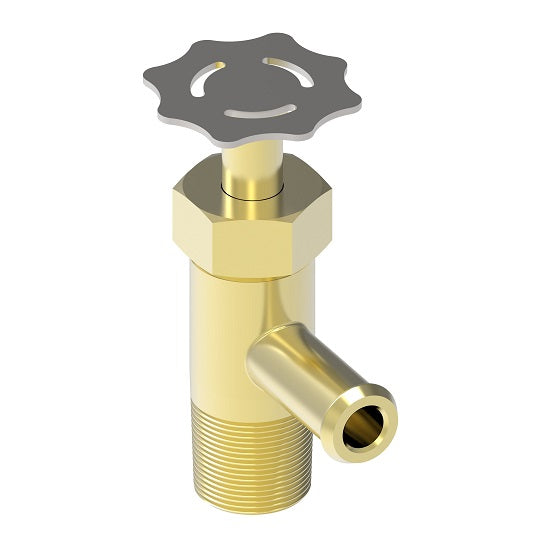

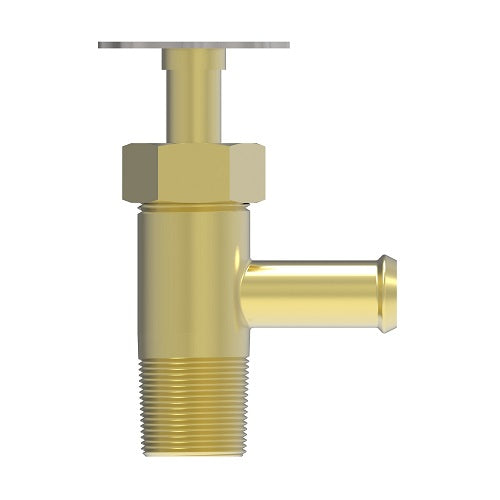

1451 by Danfoss | Drain Cock | Male Pipe to Hose Shut-Off | 90° Elbow | 3/4" Hose Barb x 1/2" Male NPTF | Brass

$51.13 - $51.13

$51.13

$51.13 - $51.13

$51.13

Aeroquip® by Danfoss
Drain Cock - Male Pipe to Hose Shut-Off - 90° Elbow

Quantity

Specifications for Variant SKU: 1451 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Hose Barb, 1/2in Male NPTF
Material(s):	Brass

Applications:
Designed for automotive or industrial use.
Advantages:
The metal-to-metal seat requires only hand tightening to assure positive leak-proof performance.
Used With:
Copper, aluminum, steel, hose and plastic tubing where applicable.
Material:
Brass bodies/steel handles, except where noted
Pressure:
150 psi maximum (does not include hose or plastic tubing.)
Temperature Range:
-65°F to +250°F (-53°C to +121°C). (Refer to tubing temperature range.)
Conformance:
Not intended for natural gas, LPG, nuclear or aircraft applications, except as noted.


Brass Part Number	Hose Size	Male Pipe Thread	Square C	L	M	M1	N
1422	3/8"	3/8"	3/4"	2.93"	1.78"	2.25"	1.12"
1423	5/8"	3/8"	13/16"	2.93"	1.81"	2.25"	1.35"
1433	3/4"	3/8"	15/16"	3.00"	1.81"	2.25"	1.35"
1451	3/4"	1/2"	15/16"	3.12"	1.93"	2.25"	1.35"
