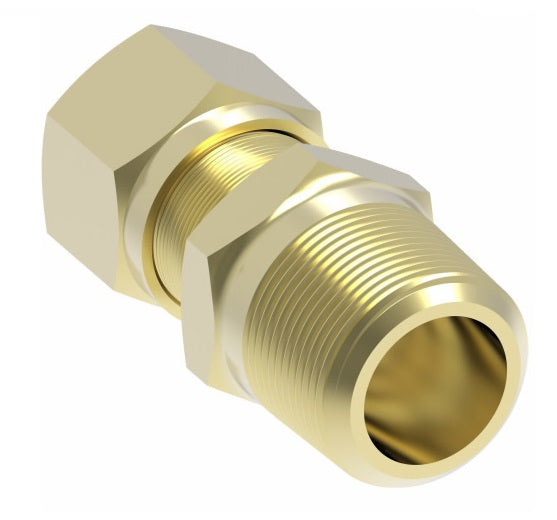

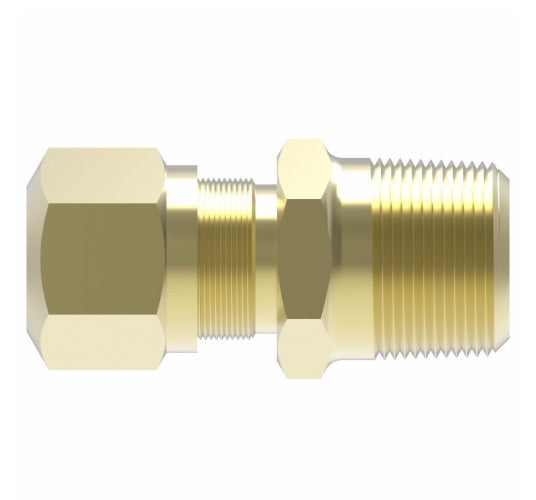

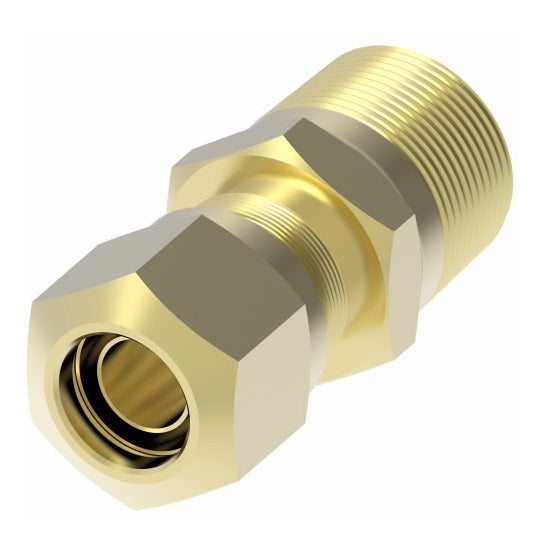

1468X4X1 by Danfoss | Air Brake Adapter for Nylon Tubing | Male Connector | 1/4" Tube OD x 1/16" Male Pipe| Brass

1468X4X1 by Danfoss | Air Brake Adapter for Nylon Tubing | Male Connector | 1/4" Tube OD x 1/16" Male Pipe | Brass

$17.47 - $17.47
$17.47
$17.47 - $17.47
$17.47

Aeroquip® by Danfoss
Air Brake Adapter for Nylon Tubing - Male Connector
Specifications for Variant SKU: 1468X4X1 Danfoss
Material(s): Brass
Compatible with the following Series: 3270 Series  |   4247 Series  |   4245 Series
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
Advantages:
  • Easy to assemble (no tube preparation or flaring required.)
  • Built in tube support.
  • May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve.
  • Insert should be removed for copper tubing use.
  • Fair Vibration Resistance.
Used With:
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass.
Pressure:
  • Maximum operating pressure of 150 psi.
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Ref. SAE No. 100102BA
  • Meets specifications and standards of SAE and DOT FMVSS 571.106.
Tube O.D. 1/4" 3/8" 1/2" 5/8" 3/4"
Thread Size 7/16-24 17/32-24 11/16-20 13/16-18 1-18
Brass
Part Number 		Brass
with Sealant
Part Number 		Tube O.D. Male Pipe
Thread		 Hex
C		 D1 L
1468X4X1 - 1/4" 1/16" 7/16" 0.125" 0.90"
1468X4 1468X4Z 1/4" 1/8" 7/16" 0.188" 0.88"
1468X4X4 1468X4X4Z 1/4" 1/4" 9/16" 0.188" 1.09"
1468X4X6 1468X4X6Z 1/4" 3/8" 11/16" 0.188" 1.12"
1468X6X2 1468X6X2Z 3/8" 1/8" 9/16" 0.188" 1.02"
1468X6 1468X6Z 3/8" 1/4" 9/16" 0.312" 1.20"
1468X6X6 1468X6X6Z 3/8" 3/8" 11/16" 0.312" 1.23"
1468X6X8 - 3/8" 1/2" 7/8" 0.312" 1.42"
1468X8X4 1468X8X4Z 1/2" 1/4" 11/16" 0.312" 1.32"
1468X8 - 1/2" 3/8" 11/16" 0.406" 1.32"
1468X8X8 1468X8X8Z 1/2" 1/2" 7/8" 0.406" 1.51"
1468X8X12 - 1/2" 3/4" 1-1/16" 0.406" 1.57"
1468X10X6 1468X10X6Z 5/8" 3/8" 13/16" 0.406" 1.38"
1468X10 1468X10Z 5/8" 1/2" 7/8" 0.531" 1.57"
1468X10X12 - 5/8" 3/4" 1-1/16" 0.750" 1.63"
1468X12 - 3/4" 1/2" 1" 0.531" 1.67"
1468X12X12 1468X12X12Z 3/4" 3/4" 1-1/16" 0.660" 1.70"
