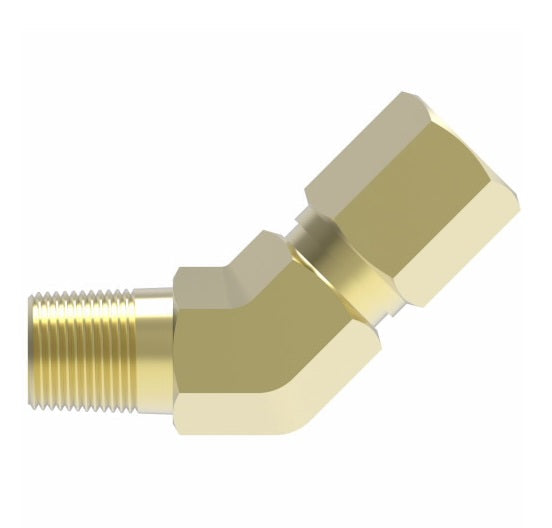

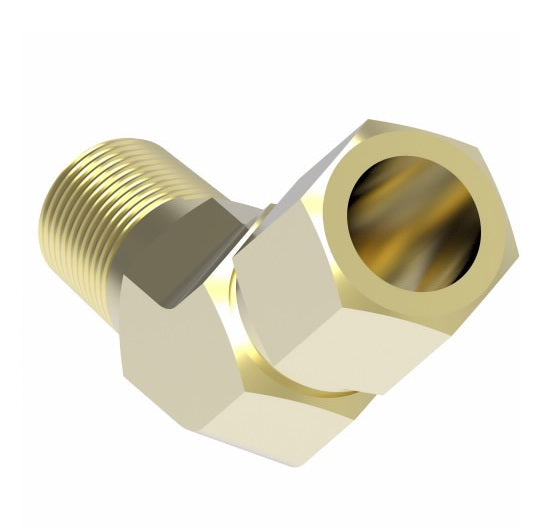

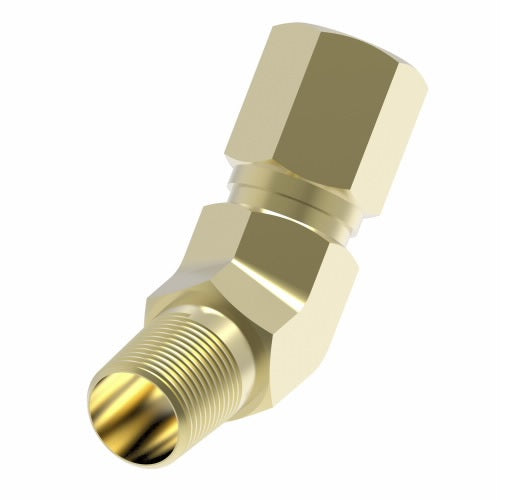

1480X4X4 by Danfoss | Air Brake Adapter for Nylon Tubing | Male Connector 45° Elbow | 1/4" Tube OD x 1/4" Male Pipe | Brass
1480X4X4 by Danfoss | Air Brake Adapter for Nylon Tubing | Male Connector 45° Elbow | 1/4" Tube OD x 1/4" Male Pipe | Brass
1480X4X4 by Danfoss | Air Brake Adapter for Nylon Tubing | Male Connector 45° Elbow | 1/4" Tube OD x 1/4" Male Pipe | Brass
1480X4X4 by Danfoss | Air Brake Adapter for Nylon Tubing | Male Connector 45° Elbow | 1/4" Tube OD x 1/4" Male Pipe | Brass

1480X4X4 by Danfoss | Air Brake Adapter for Nylon Tubing | Male Connector 45° Elbow | 1/4" Tube OD x 1/4" Male Pipe | Brass

$16.67 - $16.67
$16.67
$16.67 - $16.67
$16.67

Aeroquip® by Danfoss
Air Brake Adapter for Nylon Tubing - Male Connector

Specifications for Variant SKU: 1480X4X4 Danfoss
Shape (Orientation): 45 Degree
Material(s): Brass
Compatible with the following Series: 3270 Series  |   4247 Series  |   4245 Series
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
Advantages:
  • Easy to assemble (no tube preparation or flaring required.)
  • Built in tube support.
  • May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve.
  • Insert should be removed for copper tubing use.
  • Fair Vibration Resistance.
Used With:
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass.
Pressure:
  • Maximum operating pressure of 150 psi.
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Ref. SAE No. 100302BA
  • Meets specifications and standards of SAE and DOT FMVSS 571.106.
Tube O.D. 1/4" 3/8" 1/2" 5/8" 3/4"
Thread Size 7/16-24 17/32-24 11/16-20 13/16-18 1-18
Brass
Part Number 		Brass
with Sealant
Part Number 		Tube O.D. Male Pipe
Thread		 D1 M N
1480X4 - 1/4" 1/8" 0.188" 0.50" 0.64"
1480X4X4 - 1/4" 1/4" 0.312" 0.61" 0.86"
1480X6 1480X6Z 3/8" 1/4" 0.312" 0.72" 0.86"
1480X6X6 1480X6X6Z 3/8" 3/8" 0.406" 0.76" 0.95"
1480X8X4 1480X8X4Z 1/2" 1/4" 0.312" 0.85" 0.95"
1480X8 1480X8Z 1/2" 3/8" 0.406" 0.85" 0.95"
1480X8X8 - 1/2" 1/2" 0.531" 0.88" 1.17"
1480X10 - 5/8" 1/2" 0.531" 0.95" 1.17"
