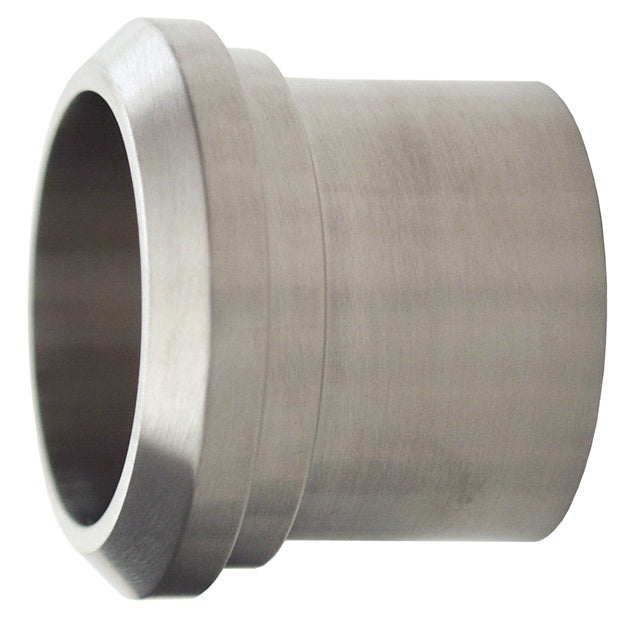

14A-R250 Dixon Valve Long Plain Bevel Seat Weld Ferrule - 2-1/2" Tube OD - 316L Stainless Steel

14A-R250 Dixon Valve Long Plain Bevel Seat Weld Ferrule - 2-1/2" Tube OD - 316L Stainless Steel

$24.72 - $24.72
$24.72
$25.95
$25.95 - $25.95
$25.95

Dixon Sanitary Fittings Long Plain Bevel Seat Weld Ferrule

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: 14A-R250 Dixon
Shape (Orientation): No Orientation
Material(s): 316L Stainless Steel
Material:
  • 316L Stainless Steel
Part Number Size Dimensions
A B C D
14A-R100 1" 1.31" 1.38" 0.87" 1.00"
14A-R150 1-1/2" 1.85" 1.50" 1.37" 1.50"
14A-R200 2" 2.38" 1.50" 1.87" 2.00"
14A-R250 2-1/2" 2.91" 1.75" 2.37" 2.50"
14A-R300 3" 3.44" 1.75" 2.87" 3.00"
14A-R400 4" 4.51" 1.75" 3.83" 4.00"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
