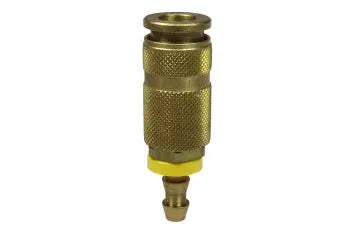

14A6L by Coilhose | CoilFlow™ Six Ball ARO Interchange Coupler | Automatic | 1/4" Body Size | 3/8" Lock-on Hose Barb | Straight | Brass (Type 14A)

Save $1.42

$12.77

$12.77 - $12.77

$12.77

$11.35

$11.35 - $11.35

$11.35

Coilhose Pneumatics - Couplers & Connectors - Coilflow™ Six Ball Couplers - Automatic - ARO Interchange 1/4" Body Size (Type 14A)

Quantity

Specifications for Variant SKU: 14A6L Coilhose
Brand:	Coilflow
Shape (Orientation):	Straight
Material(s):	Brass

Overview:
Coilflow™ Six Ball Interchange Couplers feature six stainless steel locking balls to provide a more balanced and secure connection. The locking ball diameter is sized to properly fit the connectors' form to allow greater surface contact. This makes the connector more durable, even in high-vibration conditions. These couplers are compatible with other manufacturers' couplers within the same interchange series.
Features:
Automatically Connects Six Stainless Steel locking balls provide a more secure and balanced connection, extending the life of the connector. Knurled body enhances grip. Integral drag guard prevents accidental disconnection. All couplers have stainless steel springs. Made in USA

Body Size:	1/4"	Type:	Type 14A
Interchange:	ARO	Style:	Automatic
Locking Device:	6 Stainless Balls	Internal Valve:	Zinc-Plated Steel
Body Material:	Brass	Sleeve Material:	Brass
Maximum Input Pressure:	300 PSI	Temperature Range:	-40°F to 250°F
Seals:	Nitrile (Buna N)

Thread & Barb Size
Thread & Barb Size	Part No Female	Part No Male	Part No Hose Barb	Part No Lock-On Hose Barb
1/8"	14A2F	14A2M	-	-
1/4"	14A4F	14A4M	14A4H	14A4L
5/16"	-	-	14A5H	-
3/8"	14A6F	14A6M	14A6H	14A6L
