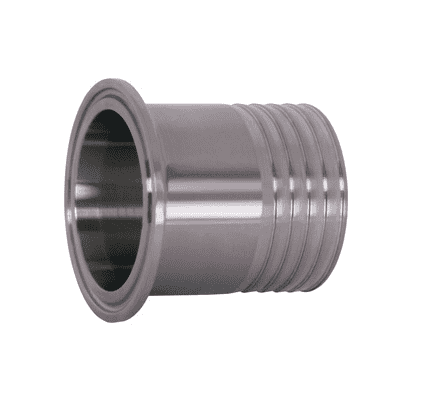

14MPHR-G150375 Dixon Valve 304 Stainless Steel Sanitary Rubber Hose Adapter - 1-1/2" Tube OD - 3/8" Hose Size

14MPHR-G150375 Dixon Valve 304 Stainless Steel Sanitary Rubber Hose Adapter - 1-1/2" Tube OD - 3/8" Hose Size

$26.37 - $26.37
$26.37
$26.65
$26.65 - $26.65
$26.65

Dixon Sanitary Fittings Sanitary Clamp Adapters for Rubber Hose - 304 Stainless Steel
Specifications for Variant SKU: 14MPHR-G150375 Dixon
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Sanitary Clamp End, 3/8in Hose Barb
Material(s): 304 Stainless Steel
Part Number Tube OD Hose Size Dimensions
 Weight (Lbs.)
A B
14MPHR-G100375 1" 3/8" - - 0.2200
14MPHR-G10075 1" 3/4" 1.688 .750 0.2600
14MPHR-G100 1" 1" 1.688 1.000 0.2400
14MPHR-G150125 1-1/2" 1/8" - - 0.6200
14MPHR-G150375 1-1/2" 3/8" - - 0.1950
14MPHR-G15050 1-1/2" 1/2" 1.500 .500 0.1900
14MPHR-G150625 1-1/2" 5/8" - - 0.6200
14MPHR-G15075 1-1/2" 3/4" 1.500 .750 0.1900
14MPHR-G150100 1-1/2" 1" 1.687 1.000 0.2300
14MPHR-G150 1-1/2" 1-1/2" 1.689 1.500 0.2370
14MPHR-G20075 2" 3/4" - - -
14MPHR-G200100 2" 1" - - 0.4000
14MPHR-G200150 2" 1-1/2" 2.312 1.500 0.4500
14MPHR-G200 2" 2" 2.312 2.000 0.4220
14MPHR-G250 2-1/2" 2-1/2" 2.344 2.500 0.4900
14MPHR-G300 3" 3" 3.094 3.000 0.7000
14MPHR-G400 4" 4" 3.406 4.000 1.1500
14MPHR-G600 6" 6" 3.406 6.000 2.3550
14MPHR-G800 8" 8" - - 3.2700
14MPHR-G1000 10" 10" - - -
