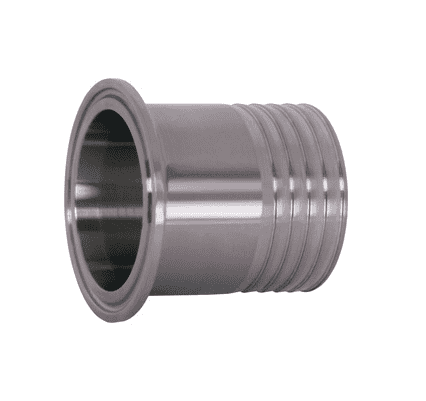

14MPHR-R150 Dixon 316L Stainless Steel Sanitary Rubber Hose Adapter - 1-1/2" Tube OD - 1-1/2" Hose Size

14MPHR-R150 Dixon Valve 316L Stainless Steel Sanitary Rubber Hose Adapter - 1-1/2" Tube OD - 1-1/2" Hose Size

Save $25.97 Save $25.97
$64.92
$64.92 - $64.92
$64.92
$38.95
$38.95 - $38.95
$38.95

Dixon Sanitary Fittings Sanitary Clamp Adapters for Rubber Hose - 316L Stainless Steel
Specifications for Variant SKU: 14MPHR-R150 Dixon
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Sanitary Clamp End, 1-1/2in Hose Barb
Material(s): 316L Stainless Steel
Part Number Tube OD Hose Size Dimensions
 Weight (Lbs.)
A B
14MPHR-R50125 1/2" 1/8" - - 0.0540
14MPHR-R50188 1/2" 0.188" - - -
14MPHR-R50375 1/2" 3/8" - - 0.0600
14MPHR-R5025 1/2" 1/4" 1.500 .250 0.0500
14MPHR-R50 1/2" 1/2" 1.500 .500 0.0600
14MPHR-R5075 1/2" 3/4" 1.500 .750 0.1350
14MPHR-R75125 3/4" 1/8" - - 0.8200
14MPHR-R75375 3/4" 3/8" 1.500 .375 0.0700
14MPHR-R7550 3/4" 1/2" 1.500 .500 0.0600
14MPHR-R75625 3/4" 5/8" - - -
14MPHR-R75 3/4" 3/4" 1.500 .750 0.0700
14MPHR-R10025 1" 1/4" - - 0.8900
14MPHR-R100375 1" 3/8" 1.500 .375 0.2300
14MPHR-R10050 1" 1/2" 1.500 .500 0.2000
14MPHR-R10075 1" 3/4" 1.688 .750 0.2500
14MPHR-R100 1" 1" 1.688 1.000 0.2500
14MPHR-R150125 1-1/2" 1/8" - - 0.2400
14MPHR-R15025 1-1/2" 1/4" - - 0.1850
14MPHR-R150375 1-1/2" 3/8" - - 0.1950
14MPHR-R15050 1-1/2" 1/2" 1.500 .500 0.1900
14MPHR-R15075 1-1/2" 3/4" 1.500 .750 0.1900
14MPHR-R150100 1-1/2" 1" 1.687 1.000 0.2300
14MPHR-R150 1-1/2" 1-1/2" 1.689 1.500 0.2150
14MPHR-R150-125 1-1/2" 1-1/4" - - 0.2500
14MPHR-R20075 2" 3/4" - - 0.3620
14MPHR-R200150 2" 1-1/2" 2.312 1.500 0.4350
14MPHR-R200 2" 2" 2.312 2.000 0.4350
14MPHR-R250 2-1/2" 2-1/2" 2.344 2.500 1.2000
14MPHR-R300 3" 3" 3.094 3.000 0.7150
14MPHR-R400 4" 4" 3.406 4.000 1.2550
14MPHR-R600 6" 6" 3.406 6.000 4.2000
14MPHR-R800 8" 8" - - 5.2400
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
