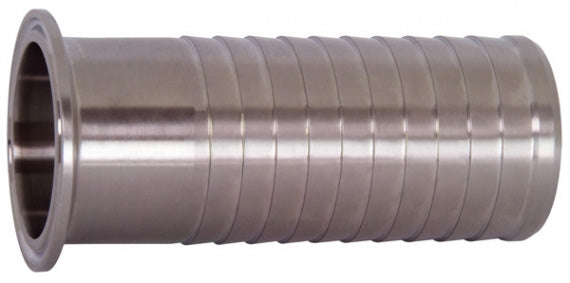

14MPHRL75 Dixon Valve 304 Stainless Steel Sanitary Brewery Hose Barb Adapter - 3/4" Tube OD

14MPHRL75 Dixon Valve 304 Stainless Steel Sanitary Brewery Hose Barb Adapter - 3/4" Tube OD

$23.50 - $23.50
$23.50
$24.67
$24.67 - $24.67
$24.67

Dixon Sanitary Fittings Sanitary Clamp Adapter - Brewery Hose Barb Adapter - 304 Stainless Steel

Suitable for use with band clamps.
Specifications for Variant SKU: 14MPHRL75 Dixon
Series: MPHRL Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Sanitary Clamp End, 3/4in Hose Barb
Material(s): 304 Stainless Steel
Notes:
  • Note: Use of PVC tubing requires special techniques to prevent leakage. All assembly work must be done with heated tube. Cold durometer is 90 as opposed to rubber hose at 65 to 70 durometer. Banding buckles must be at 180 deg. from one another.
Part Number Tube OD Dimensions
 Weight
A B C D E
14MPHRL50 1/2" - - - - - -
14MPHRL75 3/4" - - - - - -
14MPHRL100 1" 3.50" 1.05" 1.00" 0.87" 0.79" 0.3800
14MPHRL150 1-1/2" 5.00" 1.55" 1.50" 1.37" 1.29" 0.6500
14MPHRL200 2" 5.00" 2.05" 2.00" 1.87" 1.79" 0.8900
14MPHRL250 2-1/2" 5.50" 2.55" 2.50" 2.37" 2.29" 0.9000
14MPHRL300 3" 5.50" 3.05" 3.00" 2.87" 2.79" 1.5600
14MPHRL400 4" 5.50" 4.05" 4.00" 3.83" 3.79" 2.1200
14MPHRL600 6" - - - - - -
