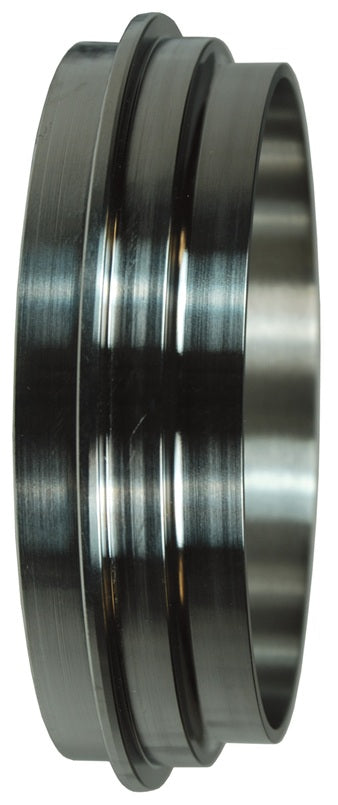

14PRFJP-R400 Dixon Valve John Perry Short Plain Weld Ferrule - 4" Tube OD - 316L Stainless Steel

14PRFJP-R400 Dixon Valve John Perry Short Plain Weld Ferrule - 4" Tube OD - 316L Stainless Steel

Save $133.33 Save $133.33
$333.33
$333.33 - $333.33
$333.33
$200.00
$200.00 - $200.00
$200.00

Dixon Sanitary Fittings John Perry Short Plain Weld Ferrule

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: 14PRFJP-R400 Dixon
Shape (Orientation): No Orientation
Material(s): 316L Stainless Steel
Construction:
  • 3A sanitary finish ID and OD
304 Stainless Steel
Part Number		 316L Stainless Steel
Part Number		 Size Wall Thickness Dimensions
A B C D
14PRFJP-G150 - 1-1/2" 0.065 1.37" 1.85" 0.72" 1.50"
14PRFJP-G200 14PRFJP-R200 2" 0.065" 1.87" 2.38" 0.72" 2.00"
14PRFJP-G250 - 2-1/2" 0.065" 2.37" 2.91" 0.84" 2.50"
14PRFJP-G300 14PRFJP-R300 3" 0.065" 2.87" 3.44" 0.91" 3.00"
- 14PRFJP-R400 4" 0.083" 3.83" 4.51" 1.22" 4.00"
