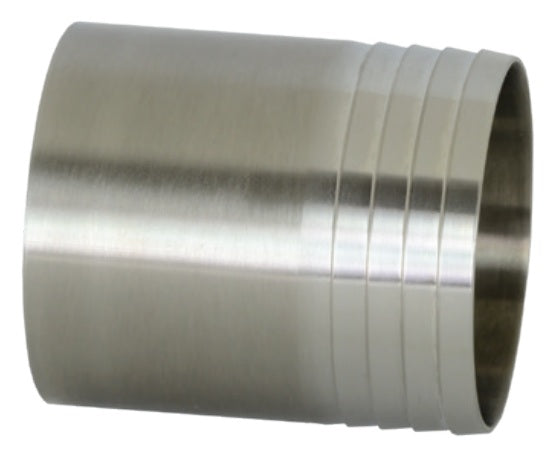

14WHR-R300 Dixon Valve Weld Hose Adapter - 3" Tube OD - Polished 316L Stainless Steel

14WHR-R300 Dixon Valve Weld Hose Adapter - 3" Tube OD - Polished 316L Stainless Steel

Save $13.36 Save $13.36
$33.40
$33.40 - $33.40
$33.40
$20.04
$20.04 - $20.04
$20.04

Dixon Sanitary Fittings Weld Hose Adapter

3A sanitary finish ID and OD
Specifications for Variant SKU: 14WHR-R300 Dixon
Shape (Orientation): Straight
Ends Configuration: 3in Hose Barb, 3in Weld End
Material(s): 316L Stainless Steel
Special Properties: Polished
Material:
  • Polished 316L Stainless Steel
Part Number Size Wall Thickness Dimensions
A B C
14WHR-R50 1/2" 0.065" 1.50" 0.37" 0.50"
14WHR-R75 3/4" 0.065" 1.50" 0.62" 0.75"
14WHR-R100 1" 0.065" 1.69" 0.87" 1.00"
14WHR-R150 1-1/2" 0.065" 1.69" 1.37" 1.50"
14WHR-R200 2" 0.065" 2.31" 1.87" 2.00"
14WHR-R250 2-1/2" 0.065" 2.00" 2.37" 2.50"
14WHR-R300 3" 0.065" 3.09" 2.87" 3.00"
14WHR-R400 4" 0.083" 3.41" 3.83" 4.00"
