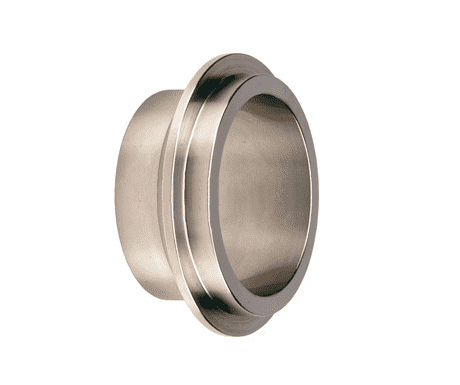

14WI-R800 Dixon 316L Stainless Steel Sanitary Male I-Line Short Weld Ferrule - 8" Tube OD

14WI-R800 Dixon Valve 316L Stainless Steel Sanitary Male I-Line Short Weld Ferrule - 8" Tube OD

Save $228.16 Save $228.16
$570.40
$570.40 - $570.40
$570.40
$342.24
$342.24 - $342.24
$342.24

Dixon Sanitary I-Line Ferrules - Male I-Line Short Weld Ferrules - 316L Stainless Steel
Specifications for Variant SKU: 14WI-R800 Dixon
Shape (Orientation): No Orientation
Material(s): 316L Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Part Number Tube OD Dimensions
Weight
(Lbs.)
A
14WI-R100 1" .600" 0.2200
14WI-R150 1-1/2" .765" 0.1900
14WI-R200 2" .790" 0.3300
14WI-R250 2-1/2" .848" 0.5550
14WI-R300 3" .906" 0.7400
14WI-R400 4" 1.031" 1.0715
14WI-R600 6" .940" 2.6900
14WI-R800 8" .940" 3.5300
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
