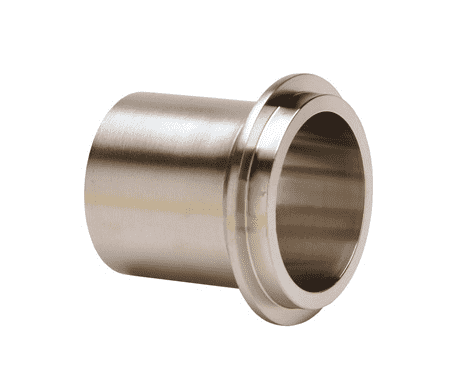

14WLI-G300 Dixon 304 Stainless Steel Sanitary Male I-line Long Weld Ferrule - 3" Tube OD

14WLI-G300 Dixon Valve 304 Stainless Steel Sanitary Male I-line Long Weld Ferrule - 3" Tube OD

Save $41.13 Save $41.13
$102.82
$102.82 - $102.82
$102.82
$61.69
$61.69 - $61.69
$61.69

Dixon Sanitary Fittings Sanitary I-Line Ferrule - Male I-line Long Weld Ferrule - 304 Stainless Steel
Specifications for Variant SKU: 14WLI-G300 Dixon
Shape (Orientation): No Orientation
Material(s): 304 Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Part Number Tube OD Dimensions
 Weight (Lbs.)
A B C D E
14WLI-G100 1" 1.760" 1.000" 0.870" 1.250" 1.990" 0.2500
14WLI-G150 1-1/2" 2.040" 1.500" 1.370" 1.740" 1.990" 0.2600
14WLI-G200 2" 2.320" 2.000" 1.870" 2.240" 2.640" 0.4350
14WLI-G250 2-1/2" 2.500" 2.500" 2.370" 2.740" 3.310" 0.7000
14WLI-G300 3" 2.690" 3.000" 2.870" 3.300" 3.870" 1.0300
14WLI-G400 4" 3.010" 4.000" 3.830" 4.300" 4.870" 1.4700
14WLI-G600 4" 2.880" 6.000" 5.780" 6.830" 7.500" 4.0000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
