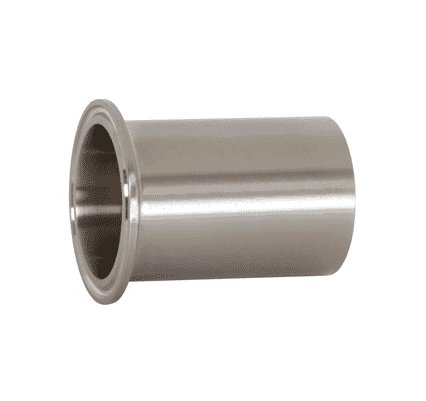

14WLMP-R800 Dixon Valve 316L Stainless Steel Sanitary Light Duty Tank Weld Ferrule - 8" Tube OD

14WLMP-R800 Dixon Valve 316L Stainless Steel Sanitary Light Duty Tank Weld Ferrule - 8" Tube OD

Save $137.65 Save $137.65
$344.12
$344.12 - $344.12
$344.12
$206.47
$206.47 - $206.47
$206.47

Dixon Sanitary Fittings Sanitary Clamp Ferrule - Tank Weld Ferrule (light duty) - 316L Stainless Steel
Specifications for Variant SKU: 14WLMP-R800 Dixon
Shape (Orientation): No Orientation
Material(s): 316L Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Part Number Tube OD Dimensions

 Weight (Lbs.)
A B C D
14WLMP-R100 1" 3.000" 1.000" 0.870" 1.980" 0.3000
14WLMP-R150 1-1/2" 3.000" 1.500" 1.370" 1.980" 0.3000
14WLMP-R200 2" 3.000" 2.000" 1.870" 2.520" 0.4000
14WLMP-R250 2-1/2" 3.000" 2.500" 2.370" 3.050" 0.5600
14WLMP-R300 3" 4.000" 3.000" 2.870" 3.580" 0.8500
14WLMP-R400 4" 4.000" 4.000" 3.830" 4.680" 1.4350
14WLMP-R600 6" 6.000" 6.000" 5.780" 6.560" 3.9250
14WLMP-R800 8" 6.000" 8.000" 7.780" 8.600" 5.4250
14WLMP-R1000 10" 6.000" 10.000" 9.760" 10.570" 15.0000
14WLMP-R1200 12" 6.000" 12.000" 11.760" 12.570" 17.0000
