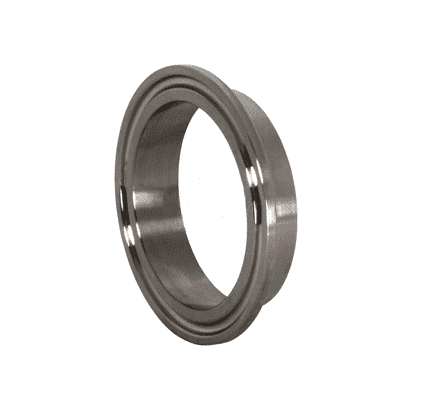

14WMP-G400 Dixon 304 Stainless Steel Sanitary Short Weld Ferrule - 4" Tube OD

14WMP-G400 Dixon Valve 304 Stainless Steel Sanitary Short Weld Ferrule - 4" Tube OD - Pack of 10

Save $12.25 Save $12.25
$110.25
$110.25 - $110.25
$110.25
$98.00
$98.00 - $98.00
$98.00

Dixon Sanitary Clamp Ferrules - Short Weld Ferrules - 304 Stainless Steel

Package Quantity: 10 Ferrules

Specifications for Variant SKU: 14WMP-G400 Dixon | 10 |
Shape (Orientation): No Orientation
Material(s): 304 Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Part Number Tube OD Dimensions (in)
Weight (Lbs.)
A B C
14WMP-G50 1/2" .500 .370 .500 0.0400
14WMP-G75 3/4" .500 .620 .750 0.0320
14WMP-G100 1" .500 .870 1.000 0.1440
14WMP-G150 1-1/2" .500 1.370 1.500 0.0945
14WMP-G200 2" .500 1.870 2.000 0.1300
14WMP-G250 2-1/2" .500 2.370 2.500 0.1700
14WMP-G300 3" .500 2.870 3.000 0.1900
14WMP-G400 4" .625 3.834 4.000 0.4000
14WMP-G600 6" .875 5.782 6.000 1.0000
14WMP-G800 8" .875 7.760 8.000 1.2000
14WMP-G1000 10" .875 9.782 10.000 1.5995
14WMP-G1200 12" .875 11.760 12.000 1.9500
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
