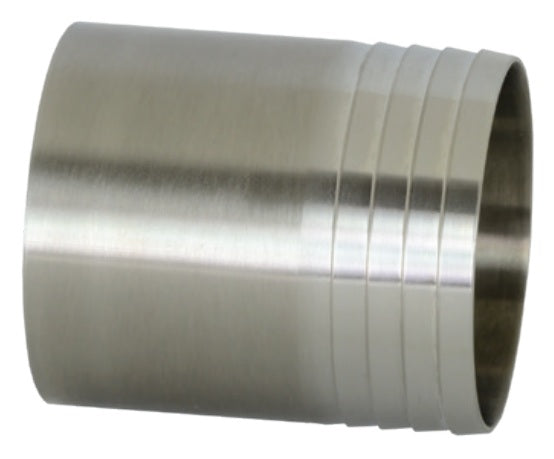

14WHR-R100 Dixon Valve Weld Hose Adapter - 1" Tube OD - Polished 316L Stainless Steel

14WHR-R100 Dixon Valve Weld Hose Adapter - 1" Tube OD - Polished 316L Stainless Steel

Save $6.50 Save $6.50
$16.25
$16.25 - $16.25
$16.25
$9.75
$9.75 - $9.75
$9.75

Dixon Sanitary Fittings Weld Hose Adapter

3A sanitary finish ID and OD
Specifications for Variant SKU: 14WHR-R100 Dixon
Shape (Orientation): Straight
Ends Configuration: 1in Hose Barb, 1in Weld End
Material(s): 316L Stainless Steel
Special Properties: Polished
Material:
  • Polished 316L Stainless Steel
Part Number Size Wall Thickness Dimensions
A B C
14WHR-R50 1/2" 0.065" 1.50" 0.37" 0.50"
14WHR-R75 3/4" 0.065" 1.50" 0.62" 0.75"
14WHR-R100 1" 0.065" 1.69" 0.87" 1.00"
14WHR-R150 1-1/2" 0.065" 1.69" 1.37" 1.50"
14WHR-R200 2" 0.065" 2.31" 1.87" 2.00"
14WHR-R250 2-1/2" 0.065" 2.00" 2.37" 2.50"
14WHR-R300 3" 0.065" 3.09" 2.87" 3.00"
14WHR-R400 4" 0.083" 3.41" 3.83" 4.00"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
