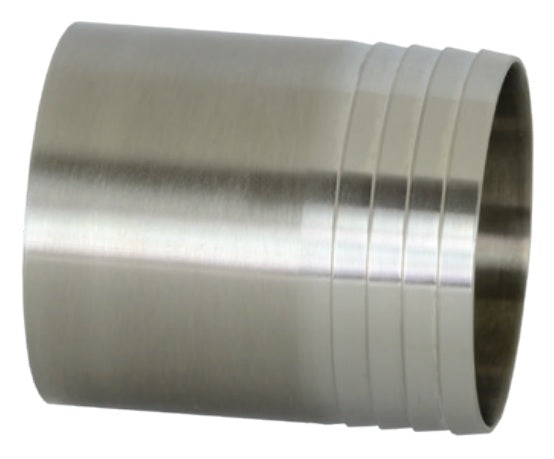

14WHR-R400 Dixon Valve Weld Hose Adapter - 4" Tube OD - Polished 316L Stainless Steel

Name: 14WHR-R400 Dixon Valve Weld Hose Adapter - 4" Tube OD - Polished 316L Stainless Steel
Brand: Dixon
SKU: 14WHR-R400 Dixon
Price: 28.51 USD
Availability: InStock

$28.20 - $28.20

$28.20

$28.51

$28.51 - $28.51

$28.51

Dixon Sanitary Fittings Weld Hose Adapter

3A sanitary finish ID and OD

Quantity

Specifications for Variant SKU: 14WHR-R400 Dixon
Shape (Orientation):	Straight
Ends Configuration:	4in Hose Barb, 4in Weld End
Material(s):	316L Stainless Steel
Special Properties:	Polished

Material:
Polished 316L Stainless Steel

Part Number	Size	Wall Thickness	Dimensions
Part Number	Size	Wall Thickness	A	B	C
14WHR-R50	1/2"	0.065"	1.50"	0.37"	0.50"
14WHR-R75	3/4"	0.065"	1.50"	0.62"	0.75"
14WHR-R100	1"	0.065"	1.69"	0.87"	1.00"
14WHR-R150	1-1/2"	0.065"	1.69"	1.37"	1.50"
14WHR-R200	2"	0.065"	2.31"	1.87"	2.00"
14WHR-R250	2-1/2"	0.065"	2.00"	2.37"	2.50"
14WHR-R300	3"	0.065"	3.09"	2.87"	3.00"
14WHR-R400	4"	0.083"	3.41"	3.83"	4.00"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
