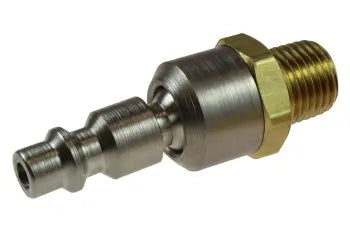

15-04BS by Coilhose | Coilflow™ Ball Swivel Connector | Industrial Interchange | 1/4" Connector x 1/4" Male NPT Thread | Steel/Brass

15-04BS by Coilhose | Coilflow™ Ball Swivel Connector | Industrial Interchange | 1/4" Connector x 1/4" Male NPT Thread | Steel/Brass

Save $6.67 Save $6.67
$16.68
$16.68 - $16.68
$16.68
$10.01
$10.01 - $10.01
$10.01
Coilhose Pneumatics - Couplers & Connectors - Ball Swivel Connectors
Specifications for Variant SKU: 15-04BS Coilhose
Brand: Coilflow
Shape (Orientation): Straight
Material(s): Steel, Brass
Special Properties: Swivel
Overview:
  • Ball Swivel Connectors combine the features of Ball Swivel fittings and Connectors, eliminating the need for an additional fitting. This creates an ergonomic and lightweight tool to hose connection. The connection and nut portion is nickel-plated hardened steel and the threaded portion of the fitting is all brass. Available in 1/4" body industrial, Automotive, ARO and Acme interchanges. Also available in 3/8" body size in Industrial and Automotive interchanges.
Features:
  • Ball swivel connectors provide a compact method of connection while extending the user's range of motion.
  • Durable steel socket construction
  • Full flow at any angle
  • Made in USA

Model Interchange Size
14-04BS ARO 1/4" Connector x 1/4" Male
14-04BSF ARO 1/4" Connector x 1/4" Female
14-06BS ARO 1/4" Connector x 3/8" Male

15-04BS Industrial 1/4" Connector x 1/4" Male
15-04BSF Industrial 1/4" Connector x 1/4" Female
15-06BS Industrial 1/4" Connector x 3/8" Male
58-04BS Industrial 3/8" Connector x 1/4" Male
58-06BS Industrial 3/8" Connector x 3/8" Male

16-04BS Automotive 1/4" Connector x 1/4" Male
16-04BSF Automotive 1/4" Connector x 1/4" Female
16-06BS Automotive 1/4" Connector x 3/8" Male
59-04BS Automotive 1/4" Connector x 1/4" Male
59-06BS Automotive 1/4" Connector x 3/8" Male

11-04BS Megaflow 1/4" Connector x 1/4" Male
11-04BSF Megaflow 1/4" Connector x 1/4" Female
