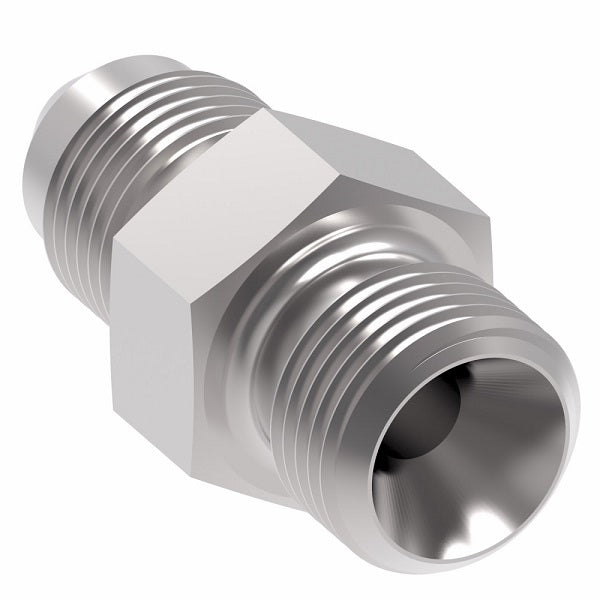

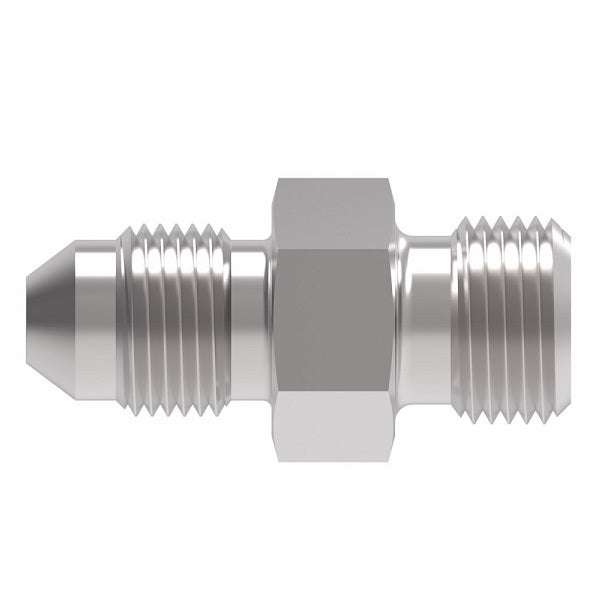

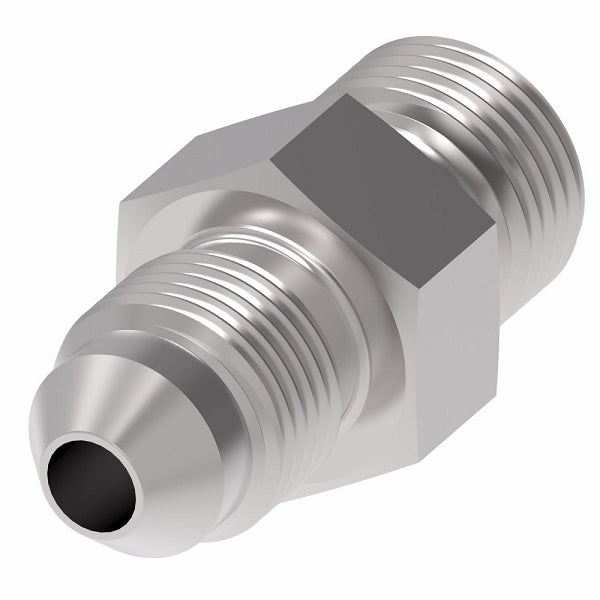

15.117-20-16 Aeroquip by Danfoss | Metric 60° (DIN 7631)/37° Flare Adapter | M30 Male Metric x -16 Male 37° JIC Flare | Steel
15.117-20-16 Aeroquip by Danfoss | Metric 60° (DIN 7631)/37° Flare Adapter | M30 Male Metric x -16 Male 37° JIC Flare | Steel
15.117-20-16 Aeroquip by Danfoss | Metric 60° (DIN 7631)/37° Flare Adapter | M30 Male Metric x -16 Male 37° JIC Flare | Steel
15.117-20-16 Aeroquip by Danfoss | Metric 60° (DIN 7631)/37° Flare Adapter | M30 Male Metric x -16 Male 37° JIC Flare | Steel

15.117-20-16 Aeroquip by Danfoss | Metric 60° (DIN 7631)/37° Flare Adapter | M30 Male Metric x -16 Male 37° JIC Flare | Steel

$77.13 - $77.13
$77.13
$77.13 - $77.13
$77.13

Aeroquip® by Danfoss
Metric 60° (DIN 7631)/37° Flare Adapter
Male Metric x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 15.117-20-16 Danfoss
Shape (Orientation): Straight
Ends Configuration: 30mm Male Metric, 1in Male JIC
Material(s): Steel
Steel
Part Number 		Tube O.D. Thread T1 Thread T2 A
15.117-4-4 0.153" M12 x 1.5 7/16-20 1.22"
15.117-6-6 0.38" M14 x 1.5 9/16-18 1.22"
15.117-8-6 0.38" M16 x 1.5 9/16-18 1.26"
15.117-8-8 0.50" M16 x 1.5 3/4-16 1.36"
15.117-10-8 0.50" M18 x 1.5 3/4-16 1.36"
15.117-16-12 0.75" M26 x 1.5 1-1/16-12 1.69"
15.117-20-16 0.754" M30 x 1.5 1-5/16-12 1.811"
15.117-25-20 1.25" M38 x 1.5 1-5/8-12 1.87"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
