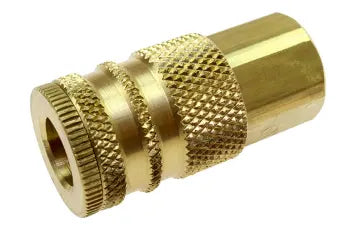

150 by Coilhose | Coilflow™ Industrial Interchange Coupler | Manual | 1/4" Body Size | 1/4" Female NPT Thread | Straight | Brass (Type 15)

Save $4.03

$10.08

$10.08 - $10.08

$10.08

$6.05

$6.05 - $6.05

$6.05

Coilhose Pneumatics - Couplers & Connectors - Coilflow™ Couplers & Connectors - Manual - Industrial Interchange 1/4" Body Size (Type 15)

Specifications for Variant SKU: 150 Coilhose
Brand:	Coilflow
Shape (Orientation):	Straight
Material(s):	Brass

Overview:
This series of couplers and connectors are engineered to interchange with the Industrial Interchange designs of all manufacturers. Connectors are machined from steel, then plated to provide years of service. Steel connectors offer a harder sealing surface that is more resistance to dings and scratches.
Features:
Manual Couplers offer a durable connection with years of service. Connector's plated steel construction contains sealing surface, even in adverse conditions. Knurled body enhances grip. Drag guard prevents accidental disconnection. Made in USA

Body Size:	1/4"	Type:	Type 15
Interchange:	Industrial	Style:	Manual
Locking Device:	4 Stainless Balls	Internal Valve:	Zinc-Plated Steel
Body Material:	Couplers: Brass Connectors: Plated Steel	Sleeve Material:	Couplers: Brass Connectors: Plated Steel
Maximum Input Pressure:	300 PSI	Temperature Range:	-40°F to 250°F
Seals:	Nitrile (Buna N)

Thread & Barb Size	Part No. Female		Part No. Male		Part No. Hose Barb		Part No. Lock-On Hose Barb
	Coupler	Connector	Coupler	Connector	Coupler	Connector	Coupler	Connector

1/8"	158	1509	159	1504	-	-	-	-
1/4"	150	1502	152	1501	153	1506	153L	1506L
5/16"	-	-	154	1507	-	-	-	-
3/8"	151	1505	155	1503	156	1508	156L	1508L
