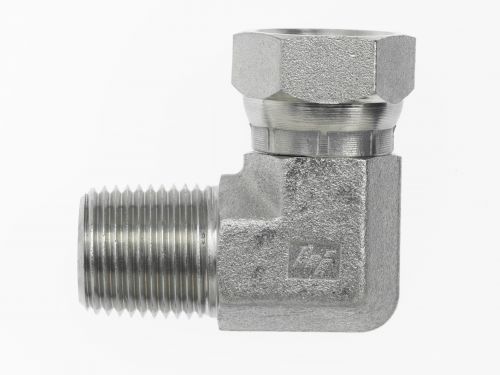

1501-12-08-FG by Brennan Inc. | -12 Male Pipe x -08 Female Pipe Swivel | 90° Elbow | Forged Steel

1501-12-08-FG by Brennan Inc. | -12 Male Pipe x -08 Female Pipe Swivel | 90° Elbow | Forged Steel

$9.35 - $9.35
$9.35
$11.85
$11.85 - $11.85
$11.85

Brennan Inc.
Tube Fittings & Adapters: 1501 - Male Pipe x Female Pipe Swivel 90° Elbow
Specifications for Variant SKU: 1501-12-08-FG Brennan
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Male NPTF, 1/2in Female NPSM
Material(s): Steel
Special Properties: Swivel
Part Number Material A1 NPTF A2 NPSM A1 Drill A2 Drill L Length M Length M1 Length C Hex Y Flats
1501-02-02-FG Forged Steel 1/8-27" 1/8-27" 0.188" 0.11/0.19" 0.720" 0.700" 0.840" 0.562" 0.438"
1501-02-04-FG Forged Steel 1/8-27" 1/4-18" 0.188" 0.220" 0.900" 0.880" 1.070" 0.688" 0.562"
1501-04-02-FG Forged Steel 1/4-18" 1/8-27" 0.281" 0.13" 1.09" 0.77" 0.91" 0.562" 0.562"
1501-04-04-FG Forged Steel 1/4-18" 1/4-18" 0.281" 0.21/0.23" 1.09" 0.880" 1.070" 0.688" 0.562"
1501-04-06-FG Forged Steel 1/4-18" 3/8-18" 0.281" 0.32/0.34" 1.220" 0.990" 1.200" 0.875" 0.750"
1501-04-08-FG Forged Steel 1/4-18" 1/2-14" 0.281" 0.46" 1.28" 1.11" 1.39" 1.000" 0.875"
1501-06-04-FG Forged Steel 3/8-18" 1/4-18" 0.406" 0.220" 1.220" 0.990" 1.180" 0.688" 0.750"
1501-06-06-FG Forged Steel 3/8-18" 3/8-18" 0.406" 0.32/0.36" 1.220" 0.990" 1.200" 0.875" 0.750"
1501-06-06-FG-VS
(with VIBRA Seal)		 Forged Steel 3/8-18" 3/8-18" 0.406" 0.32/0.36" 1.220" 0.990" 1.200" 0.875" 0.750"
1501-06-08-FG Forged Steel 3/8-18" 1/2-14" 0.406" 0.46/0.48" 1.28" 1.11" 1.39" 1.000" 0.875"
1501-06-12-FG Forged Steel 3/8-18" 3/4-14" 0.406" 0.640" 1.400" 1.300" 1.650" 1.250" 1.062"
1501-08-04-FG Forged Steel 1/2-14" 1/4-18" 0.531" 0.22" 1.47" 1.02" 1.21" 0.688" 0.875"
1501-08-06-FG Forged Steel 1/2-14" 3/8-18" 0.531" .32/.34" 1.47" 1.040" 1.250" 0.875" 0.875"
1501-08-08-FG Forged Steel 1/2-14" 1/2-14" 0.531" 0.44/0.48" 1.47" 1.110" 1.390" 1.000" 0.875"
1501-08-12-FG Forged Steel 1/2-14" 3/4-14" 0.531" 0.61" 1.59" 1.30" 1.65" 1.250" 1.062"
1501-12-04-FG Forged Steel 3/4-14" 1/4-18" 0.719" 0.22" 1.59" 1.24" 1.43" 0.688" 1.062"
1501-12-06-FG Forged Steel 3/4-14" 3/8-18" 0.719" 0.34/0.36" 1.59" 1.26" 1.47" 0.875" 1.062"
1501-12-08-FG Forged Steel 3/4-14" 1/2-14" 0.719" 0.46" 1.59" 1.33" 1.61" 1.000" 1.062"
1501-12-12-FG Forged Steel 3/4-14" 3/4-14" 0.719" 0.61/0.66" 1.59" 1.300" 1.650" 1.250" 1.062"
1501-12-16-FG Forged Steel 3/4-14" 1-11-1/2" 0.719" 0.78/0.88" 1.78" 1.54" 1.89" 1.500" 1.312"
1501-12-20-FG Forged Steel 3/4-14" 1-1/4-11-1/2" 0.719" 1.01/1.03" 2.160" 1.730" 2.150" 1.875" 1.625"
1501-16-08-FG Forged Steel 1-11-1/2" 1/2-14" 0.938" 0.44/0.46" 1.970" 1.400" 1.680" 1.000" 1.312"
1501-16-12-FG Forged Steel 1-11-1/2" 3/4-14" 0.938" 0.630" 1.970" 1.410" 1.750" 1.250" 1.312"
1501-16-16-FG Forged Steel 1-11-1/2" 1-11-1/2" 0.938" 0.78/0.88" 1.970" 1.54" 1.89" 1.500" 1.312"
1501-16-20-FG Forged Steel 1-11-1/2" 1-1/4-11-1/2" 0.938" 1.010" 2.350" 1.730" 2.150" 1.875" 1.625"
1501-20-12-FG Forged Steel 1-1/4-11-1/2" 3/4-14" 1.250" 0.64" 2.38" 1.56" 1.91" 1.250" 1.625"
1501-20-16-FG Forged Steel 1-1/4-11-1/2" 1-11-1/2" 1.250" 0.830" 2.38" 1.700" 2.050" 1.500" 1.625"
1501-20-20-FG Forged Steel 1-1/4-11-1/2" 1-1/4-11-1/2" 1.250" 1.09" 2.38" 1.73" 2.15" 1.875" 1.625"
1501-20-24-FG Forged Steel 1-1/4-11-1/2" 1-1/2-11-1/2" 1.250" 1.32" 2.61" 1.89" 2.31" 2.125" 1.875"
1501-24-20-FG Forged Steel 1-1/2-11-1/2" 1-1/4-11-1/2" 1.500" 1.01/1.03" 2.640" 1.770" 2.190" 1.875" 1.875"
1501-24-24-FG Forged Steel 1-1/2-11-1/2" 1-1/2-11-1/2" 1.500" 1.250" 2.640" 1.890" 2.310" 2.125" 1.875"
1501-32-32-FG Forged Steel 2-11-1/2" 2-11-1/2" 1.938" 1.720" 3.000" 2.270" 2.690" 2.625" 2.500"

1501-02-02-SS Stainless Steel 1/8-27" 1/8-27" 0.188" 0.11/0.19" 0.720" 0.700" 0.840" 0.562" 0.438"
1501-02-04-SS Stainless Steel - - - - - - - - -
1501-04-04-SS Stainless Steel 1/4-18" 1/4-18" 0.281" 0.21/0.23" 1.090" 0.880" 1.070" 0.688" 0.562"
1501-04-06-SS Stainless Steel 1/4-18" 3/8-18" 0.281" 0.34" 1.22" 0.99" 1.20" 0.875" 0.750"
1501-06-04-SS Stainless Steel 3/8-18" 1/4-18" 0.406" 0.22" 1.22" 0.99" 1.18" 0.688" 0.750"
1501-06-06-SS Stainless Steel 3/8-18" 3/8-18" 0.406" 0.32/0.36" 1.220" 0.990" 1.200" 0.875" 0.750"
1501-06-08-SS Stainless Steel 3/8-18" 1/2-14" 0.406" 0.46" 1.28" 1.11" 1.39" 1.000" 0.875"
1501-08-06-SS Stainless Steel 1/2-14" 3/8-18" 0.531" 0.34" 1.47" 1.04" 1.25" 0.875" 0.875"
1501-08-08-SS Stainless Steel 1/2-14" 1/2-14" 0.531" 0.44/0.48" 1.470" 1.110" 1.390" 1.000" 0.875"
1501-08-12-SS Stainless Steel 1/2-14" 3/4-14" 0.531" 0.64" 1.59" 1.30" 1.65" 1.250" 1.062"
1501-12-08-SS Stainless Steel 3/4-14" 1/2-14" 0.719" 0.46" 1.59" 1.24" 1.52" 1.000" 1.062"
1501-12-12-SS Stainless Steel 3/4-14" 3/4-14" 0.719" 0.61/.066" 1.590" 1.30" 1.65" 1.250" 1.062"
1501-16-16-SS Stainless Steel 1-11-1/2" 1-11-1/2" 0.938" 0.83" 1.97" 1.54" 1.89" 1.500" 1.312"
1501-20-20-SS Stainless Steel 1-1/4-11-1/2" 1-1/4-11-1/2" 1.250" 1.09" 2.38" 1.73" 2.15" 1.875" 1.625"
1501-24-24-SS Stainless Steel 1-1/2-11-1/2" 1-1/2-11-1/2" 1.500" 1.32" 2.64" 1.89" 2.31" 2.125" 1.875"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
