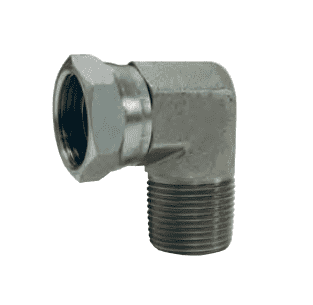

1501-6-6 Dixon Zinc Plated Steel 90 deg. 3/8"-18 Male NPTF x 3/8"-18 Female NPSM Swivel Nut

1501-6-6 Dixon Valve Zinc Plated Steel 90 deg. 3/8"-18 Male NPTF x 3/8"-18 Female NPSM Swivel Nut

Save $0.57 Save $0.57
$5.16
$5.16 - $5.16
$5.16
$4.59
$4.59 - $4.59
$4.59

NPT Fittings - 90 deg. Male NPTF x Female NPSM Swivel Nut - Zinc Plated Steel
Specifications for Variant SKU: 1501-6-6 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Female NPSM, 3/8in Male NPSM
Material(s): Zink-Plated Steel
Features:
  • Designed to prevent hose stress due to twisting during assembly.
  • Compact design provides ease of assembly in confining areas.
  • Female NPSM swivel seals on a 30 deg. seat.
  • Male NPTF must have a 30 deg. chamfer to seal.
Part Number Male NPTF Female NPSM Swivel Working Pressure Weight (Lbs.)
1501-2-2 1/8"-27 1/8"-27 5000 PSI 0.0600
1501-4-4 1/4"-18 1/4"-18 4500 PSI 0.1200
1501-4-6 1/4"-18 3/8"-18 4000 PSI 0.3060
1501-6-4 3/8"-18 1/4"-18 4000 PSI 0.3000
1501-6-6 3/8"-18 3/8"-18 4000 PSI 0.2100
1501-6-8 3/8"-18 1/2"-14 4000 PSI 0.4200
1501-8-6 1/2"-14 3/8"-18 3000 PSI 0.4050
1501-8-8 1/2"-14 1/2"-14 3000 PSI 0.3100
1501-8-12 1/2"-14 3/4"-14 3000 PSI 0.1500
1501-12-8 3/4"-14 1/2"-14 2500 PSI 0.7200
1501-12-12 3/4"-14 3/4"-14 2500 PSI 0.4800
1501-12-16 3/4"-14 1"-11-1/2 2000 PSI 1.2540
1501-16-12 1"-11-1/2 3/4"-14 2000 PSI 1.1970
1501-16-16 1"-11-1/2 1"-11-1/2 2000 PSI 0.8200
1501-16-20 1"-11-1/2 1-1/4"-11-1/2 1150 PSI 2.2360
1501-20-20 1-1/4"-11-1/2 1-1/4"-11-1/2 1150 PSI 2.3000
