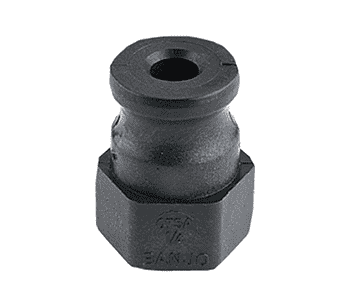

150125A Banjo Polypropylene Cam Lever Coupling - Part A - 1-1/2" Male Adapter x 1-1/4" Female NPT - 125 PSI - Gasket: N/A (Pack of 10)

150125A by Banjo | Cam Lever Coupling | Part A | 1-1/2" Male Adapter x 1-1/4" Female NPT | 225 PSI | No Gasket | Polypropylene | Pack of 10

Save $5.97

$53.70

$53.70 - $53.70

$53.70

$47.73

$47.73 - $47.73

$47.73

Banjo Cam Lever Couplings - Polypropylene Cam Lever Couplings - 1-1/2" x 1-1/4" Series

Package Quantity: 10 EA

Quantity

Specifications for Variant SKU: 150125A Banjo \| 10 \|
Shape (Orientation):	Straight
Cam Type:	Type A
Ends Configuration:	1-1/2in Male Cam & Groove, 1-1/4in Female NPT
Material(s):	Polypropylene

Applications:
Agriculture Industrial Fluids
Features:
Stainless steel rings, arms & pins Most complete line of polypropylene couplings available Versatile - interchangeable with all types of cam lever couplers Precision molded - insures a uniform and accurate fit Durable - Polypropylene is glass reinforced for rugged strength and durability Smooth operating - finger rings are designed for easy opening of cam levers Complete series of 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 3" and 4" NPT thread BSP threads available 1" - 3" sizes (excluding 1-1/4") Economical and superior in performance Standard with EPDM gaskets. Buna "N", and FKM (viton type) also available Note: 303B & 303C & All 4" Couplings have 3 Arms for POSITIVE SEAL! WARNING: Couplings should not be disconnected under pressure or with liquid in the line. For other sizes & replacement parts, see: Banjo Polypropylene Cam Lever Couplings & Replacement Parts
Guide:

Part Number	Type	End Type	Max PSI	Gasket
150125A	Part A	1-1/2" Male Adapter x 1-1/4" Female NPT	225 PSI	None
150125B	Part B	1-1/2" Female Coupler x 1-1/4" Male NPT	300 PSI	EPDM
150125C	Part C	1-1/2" Female Coupler x 1-1/4" Hose Shank	300 PSI	EPDM
150125D	Part D	1-1/2" Female Coupler x 1-1/4" Female NPT	300 PSI	EPDM
150125E	Part E	1-1/2" Male Adapter x 1-1/4" Hose Shank	225 PSI	EPDM
150125F	Part F	1-1/2" Male Adapter x 1-1/4" Male NPT	300 PSI	None
150PL	Part PL	1-1/2" Plug - Male Adapter	225 PSI	None
150CAP	Part CAP	1-1/2" Cap - Female Coupler	300 PSI	EPDM

Note: 1/4", 3/8" and 1/2" series couplings interchange with 3/4" size couplings. Coupling ends are 3/4" size 1-1/4" series couplings interchange with 1" size couplings. Coupling ends are 1" size. 1-1/2" x 1-1/4" couplings interchange with 1-1/2" size couplings. Coupling ends are 1-1/2" size

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
