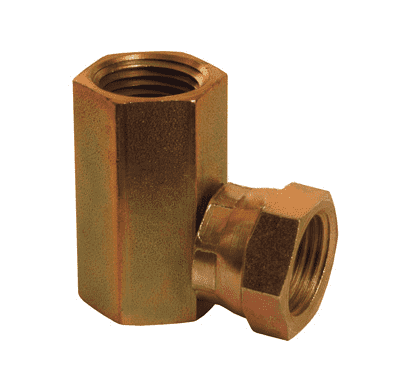

1502-4-4 Dixon Zinc Plated Steel 90 deg. 1/4"-18 Female NPTF x 1/4"-18 Female NPSM Swivel Nut

1502-4-4 Dixon Valve Zinc Plated Steel 90 deg. 1/4"-18 Female NPTF x 1/4"-18 Female NPSM Swivel Nut

Save $0.60 Save $0.60
$5.43
$5.43 - $5.43
$5.43
$4.83
$4.83 - $4.83
$4.83

NPT Fittings - 90 deg. Female NPTF x Female NPSM Swivel Nut - Zinc Plated Steel
Specifications for Variant SKU: 1502-4-4 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Female NPTF, 1/4in Female NPSM
Material(s): Zink-Plated Steel
Features:
  • Designed to prevent hose stress due to twisting during assembly.
  • Compact design provides ease of assembly in confining areas.
  • Female NPSM swivel seals on a 30 deg. seat.
  • Male NPTF must have a 30 deg. chamfer to seal.
Part Number Female NPTF Female NPSM Swivel Working Pressure Weight (Lbs.)
1502-4-4 1/4"-18 1/4"-18 4500 PSI 0.1650
1502-6-6 3/8"-18 3/8"-18 4000 PSI 0.2500
1502-8-8 1/2"-14 1/2"-14 3000 PSI 0.3500
1502-12-12 3/4"-14 3/4"-14 2500 PSI 0.7400
1502-16-16 1"-11-1/2 1"-11-1/2 2000 PSI 1.2400
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
