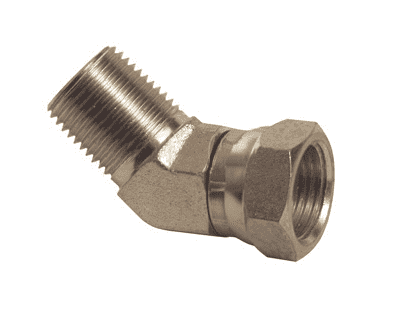

1503-16-16 Dixon Zinc Plated Steel 45 deg. 1"-11-1/2 Male NPTF x 1"-11-1/2 Female NPSM Swivel Nut

1503-16-16 Dixon Valve Zinc Plated Steel 45 deg. 1"-11-1/2 Male NPTF x 1"-11-1/2 Female NPSM Swivel Nut

Save $9.31 Save $9.31
$23.28
$23.28 - $23.28
$23.28
$13.97
$13.97 - $13.97
$13.97

NPT Fittings - 45 deg. Male NPTF x Female NPSM Swivel Nut - Zinc Plated Steel
Specifications for Variant SKU: 1503-16-16 Dixon
Shape (Orientation): 45 Degree
Ends Configuration: 1in Male NPTF, 1in Female NPSM
Material(s): Zink-Plated Steel
Features:
  • Designed to prevent hose stress due to twisting during assembly.
  • Compact design provides ease of assembly in confining areas.
  • Female NPSM swivel seals on a 30 deg. seat.
  • Male NPTF must have a 30 deg. chamfer to seal.
Part Number Male NPTF Female NPSM Swivel Working Pressure Weight (Lbs.)
1503-4-4 1/4"-18 1/4"-18 4500 PSI 0.0900
1503-6-6 3/8"-18 3/8"-18 4000 PSI 0.1500
1503-8-8 1/2"-14 1/2"-14 3000 PSI 0.3350
1503-12-12 3/4"-14 3/4"-14 2500 PSI 0.3505
1503-16-16 1"-11-1/2 1"-11-1/2 2000 PSI 0.5115
