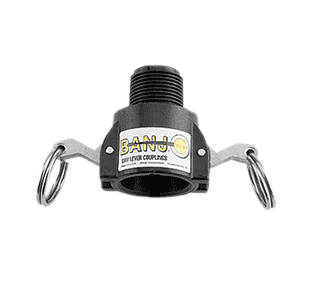

150B Banjo Polypropylene Cam Lever Coupling - Part B - 1-1/2" Female Coupler x 1-1/2" Male NPT - 125 PSI - Gasket: EPDM

150B by Banjo | Cam Lever Coupling | Part B | 1-1/2" Female Coupler x 1-1/2" Male NPT | 300 PSI | Gasket: EPDM | Polypropylene

Save $1.35 Save $1.35
$12.16
$12.16 - $12.16
$12.16
$10.81
$10.81 - $10.81
$10.81

Banjo Cam Lever Couplings - Polypropylene Cam Lever Couplings - 1-1/2" Series

Specifications for Variant SKU: 150B Banjo
Shape (Orientation): Straight
Cam Type: Type B
Ends Configuration: 1-1/2in Female Cam & Groove, 1-1/2in Male NPT
Material(s): Polypropylene
Seal Material(s): EPDM
Applications:
  • Agriculture
  • Industrial
  • Fluids
Features:
  • Stainless steel rings, arms & pins
  • Most complete line of polypropylene couplings available
  • Versatile - interchangeable with all types of cam lever couplers
  • Precision molded - insures a uniform and accurate fit
  • Durable - Polypropylene is glass reinforced for rugged strength and durability
  • Smooth operating - finger rings are designed for easy opening of cam levers
  • Complete series of 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 3" and 4" NPT thread
  • BSP threads available 1" - 3" sizes (excluding 1-1/4")
  • Economical and superior in performance
  • Standard with EPDM gaskets. Buna "N", and FKM (viton type) also available
  • Note: 303B & 303C & All 4" Couplings have 3 Arms for POSITIVE SEAL!
  • WARNING: Couplings should not be disconnected under pressure or with liquid in the line.
  • For other sizes & replacement parts, see: Banjo Polypropylene Cam Lever Couplings & Replacement Parts
Guide:

Part Number Type End Type Max PSI Gasket
150125A Part A 1-1/2" Male Adapter x 1-1/2" Female NPT 225 PSI None
150B Part B 1-1/2" Female Coupler x 1-1/2" Male NPT 300 PSI EPDM
150C Part C 1-1/2" Female Coupler x 1-1/2" Hose Shank 300 PSI EPDM
150D Part D 1-1/2" Female Coupler x 1-1/2" Female NPT 300 PSI EPDM
150E Part E 1-1/2" Male Adapter x 1-1/2" Hose Shank 200 PSI None
150F Part F 1-1/2" Male Adapter x 1-1/2" Male NPT 300 PSI None
150CAP Part PL 1-1/2" Cap - Male Adapter 300 PSI EPDM
150PL Part CAP 1-1/2" Plug - Female Coupler 225 PSI None

Note: 1/4", 3/8" and 1/2" series couplings interchange with 3/4" size couplings. Coupling ends are 3/4" size 1-1/4" series couplings interchange with 1" size couplings. Coupling ends are 1" size. 1-1/2" x 1-1/4" couplings interchange with 1-1/2" size couplings. Coupling ends are 1-1/2" size
