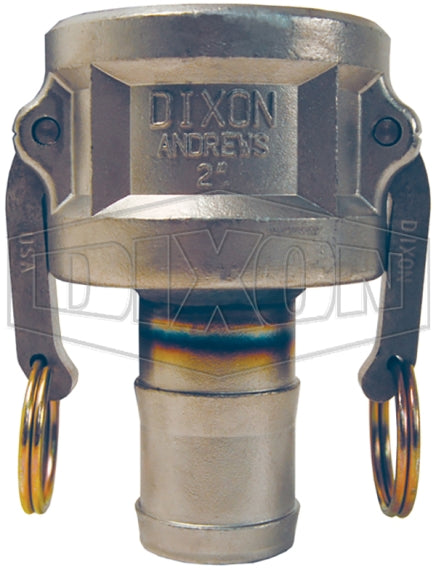

1510-C-SS by Dixon Valve | Cam & Groove Reducer (Jump Size) Coupler | Type C | 1-1/2" Coupler x 1" Hose Shank | 316 Stainless Steel

Name: 1510-C-SS by Dixon Valve | Cam & Groove Reducer (Jump Size) Coupler | Type C | 1-1/2" Coupler x 1" Hose Shank | 316 Stainless Steel
Brand: Dixon
SKU: 1510-C-SS Dixon
Price: 187.71 USD
Availability: InStock

Save $125.14

$312.85

$312.85 - $312.85

$312.85

$187.71

$187.71 - $187.71

$187.71

Dixon Valve
Cam & Groove Reducer (Jump Size) Coupler | Type C | Coupler x Hose Shank

Designed for use with liquids.

Specifications for Variant SKU: 1510-C-SS Dixon
Shape (Orientation):	Straight
Cam Type:	Type C
Ends Configuration:	1-1/2in Female Cam & Groove, 1in Hose Barb
Material(s):	316 Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Features:
Precision machined to rigid tolerances. Stainless pins will not rust or bind, providing great strength and safety. Recess holds gasket firmly in place - ensures proper placement. Long shank design allows proper banding, thus eliminating the major cause of hose damage.
Construction:
Nitrile Rubber gasket. Durable stainless steel cam arm pins. Supplied with safety clips.
Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	316 Stainless Steel Part Number	Size Coupler x Hose Shank	Maximum Operating Pressure
-	1510-C-SS	1-1/2" x 1"	250 PSI
2015-C-AL*	2015-C-SS*	2" x 1-1/2"	250 PSI
3020-C-AL	3020-C-SS	3" x 2"	125 PSI
-	3025-C-SS	3" x 2-1/2"	125 PSI
3040-C-AL	-	3" x 4"	100 PSI
4030-C-AL	4030-C-SS*	4" x 3"	100 PSI
5040-C-AL*	-	5" x 4"	75 PSI

* Parts are produced as a welded fabrication

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

Shop Parts by Dixon Valve & Coupling
