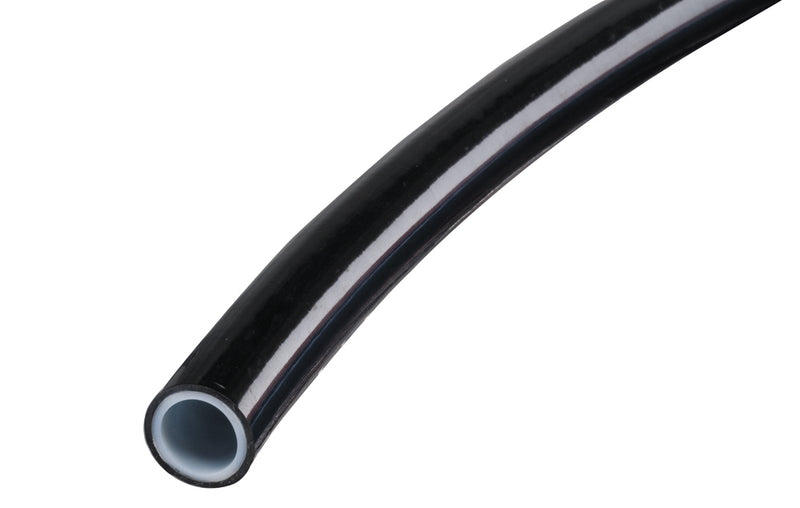

151BK-06X100 Kuri-Tec ENDURE™ by Kuriyama | 151 Series (Type B) | Reinforced DOT Air Brake Tubing | 3/8" OD | 0.251" ID | Black | 100ft Length

151BK-06X100 Kuri-Tec ENDURE™ by Kuriyama | 151 Series (Type B) | Reinforced DOT Air Brake Tubing | 3/8" OD | 0.251" ID | Black | 100ft Length

Save $21.55 Save $21.55
$97.75
$97.75 - $97.75
$97.75
$76.20
$76.20 - $76.20
$76.20

Kuri Tec® by Kuriyama
ENDURE™ 151 Series (Type B) | Reinforced DOT Air Brake Tubing

Use with:
Auxiliary air systems
Trailer air brake systems
Truck, bus and commercial vehicle air brake systems

Meets and exceeds DOT FMVSS 106.

Meets and exceeds performance requirements of SAE J844.

Package Quantity: 100 Foot

Specifications for Variant SKU: 151BK-06X100 Kuriyama | 100 |
Brand: ENDURE, Kuri-Tec
Series: 151 Series
Hose Color(s): Black
Internal Diameter: 0.251in
Outer Diameter: 0.375in
Tubing Construction: Polyester
Applicable Specs & Approvals: D.O.T. FMVSS 106, SAE J844
Compatible with the following Series: DOT-BRMC Series  |   DOT-BRFC Series  |   DOT-BRME90 Series  |   DOT-BRME90S Series  |   DOT-BRME45S Series  |   DOT-BRMBTS Series  |   DOT-BRMRTS Series  |   DOT-BRUN Series  |   DOT-BRBH Series  |   DOT-BRUNE90 Series  |   DOT-BRUNT Series

SPECIFICATIONS

Applications: Auxiliary air systems
Trailer air brake systems
Truck, bus and commercial vehicle air brake systems
Tube: Specially designed polyester compounds
Service Temperature Range: -40°F (-40°C) to +200°F (+93°C)
Specifications: Meets and exceeds DOT FMVSS 106.
Meets and exceeds performance requirements of SAE J844.
Other Features:
  • Superior Flexibility - Highly engineered polyester material exhibits improved flexibility versus traditional nylon tubing.
  • Excellent Resistance - Excellent resistance to abrasion, gasoline, diesel fuel, road salt and deicing compounds.
  • Industry Leading Impact Strength and Vibration Cracking Resistance - Engineered formulation retains its flexibility and resists impact cracking in both high heat and sub-zero cold weather conditions; providing longer service life than traditional nylon tubing.
  • Exceeds Industry Performance Standards - Far surpasses traditional nylon tubing for heat aging and heated oil aging, while retaining its superior performance and flexibility over lower temperatures than traditional nylon tubing.
  • Easy Installation - Greater flexibility allows for easier installation reducing time, effort and installer fatigue.
  • Weather Resistant - Heat and light stabilized for superior UV resistance and long service life. Resists the cracking that can result from damaging UV light.
151BK Series | Black
Part Number
100ft		 Part Number
250ft		 Part Number
500ft		 Nominal
OD		 Nominal
ID		 Nominal
Wall		 Min.
Burst
Pressure		 Min.
Bend
Radius
(in) (in) (in) (PSI)
at 70°F (20°C)		 (in)
at 70°F (20°C)
151BK-06X100 - 151BK-06X500 3/8" 0.251" 0.062" 1,400 PSI 1.5"
151BK-08X100 - 151BK-08X500 1/2" 0.376" 0.062" 950 PSI 2.50"
151BK-10X100 151BK-10X250 - 5/8" 0.441" 0.094" 900 PSI 3.0"
151BK-12X100 151BK-12X250 - 3/4" 0.566" 0.094" 850 PSI 3.5"
151BL Series | Blue
Part Number
100ft		 Part Number
250ft		 Part Number
500ft		 Nominal
OD		 Nominal
ID		 Nominal
Wall		 Min.
Burst
Pressure		 Min.
Bend
Radius
(in) (in) (in) (PSI)
at 70°F (20°C)		 (in)
at 70°F (20°C)
151BL-06X100 - 151BL-06X500 3/8" 0.251" 0.062" 1,400 PSI 1.5"
151BL-08X100 - 151BL-08X500 1/2" 0.376" 0.062" 950 PSI 2.50"
151BL-10X100 151BL-10X250 - 5/8" 0.441" 0.094" 900 PSI 3.0"
151BL-12X100 151BL-12X250 - 3/4" 0.566" 0.094" 850 PSI 3.5"
151GR Series | Green
Part Number
100ft		 Part Number
250ft		 Part Number
500ft		 Nominal
OD		 Nominal
ID		 Nominal
Wall		 Min.
Burst
Pressure		 Min.
Bend
Radius
(in) (in) (in) (PSI)
at 70°F (20°C)		 (in)
at 70°F (20°C)
151GR-06X100 - 151GR-06X500 3/8" 0.251" 0.062" 1,400 PSI 1.5"
151GR-08X100 - 151GR-08X500 1/2" 0.376" 0.062" 950 PSI 2.50"
151GR-10X100 151GR-10X250 - 5/8" 0.441" 0.094" 900 PSI 3.0"
151GR-12X100 151GR-12X250 - 3/4" 0.566" 0.094" 850 PSI 3.5"
151OR Series | Orange
Part Number
100ft		 Part Number
250ft		 Part Number
500ft		 Nominal
OD		 Nominal
ID		 Nominal
Wall		 Min.
Burst
Pressure		 Min.
Bend
Radius
(in) (in) (in) (PSI)
at 70°F (20°C)		 (in)
at 70°F (20°C)
151OR-06X100 - 151OR-06X500 3/8" 0.251" 0.062" 1,400 PSI 1.5"
151OR-08X100 - 151OR-08X500 1/2" 0.376" 0.062" 950 PSI 2.50"
151OR-10X100 151OR-10X250 - 5/8" 0.441" 0.094" 900 PSI 3.0"
151OR-12X100 151OR-12X250 - 3/4" 0.566" 0.094" 850 PSI 3.5"
151RD Series | Red
Part Number
100ft		 Part Number
250ft		 Part Number
500ft		 Nominal
OD		 Nominal
ID		 Nominal
Wall		 Min.
Burst
Pressure		 Min.
Bend
Radius
(in) (in) (in) (PSI)
at 70°F (20°C)		 (in)
at 70°F (20°C)
151RD-06X100 - 151RD-06X500 3/8" 0.251" 0.062" 1,400 PSI 1.5"
151RD-08X100 - 151RD-08X500 1/2" 0.376" 0.062" 950 PSI 2.50"
151RD-10X100 151RD-10X250 - 5/8" 0.441" 0.094" 900 PSI 3.0"
151RD-12X100 151RD-12X250 - 3/4" 0.566" 0.094" 850 PSI 3.5"
151YE Series | Yellow
Part Number
100ft		 Part Number
250ft		 Part Number
500ft		 Nominal
OD		 Nominal
ID		 Nominal
Wall		 Min.
Burst
Pressure		 Min.
Bend
Radius
(in) (in) (in) (PSI)
at 70°F (20°C)		 (in)
at 70°F (20°C)
151YE-06X100 - 151YE-06X500 3/8" 0.251" 0.062" 1,400 PSI 1.5"
151YE-08X100 - 151YE-08X500 1/2" 0.376" 0.062" 950 PSI 2.50"
151YE-10X100 151YE-10X250 - 5/8" 0.441" 0.094" 900 PSI 3.0"
151YE-12X100 151YE-12X250 - 3/4" 0.566" 0.094" 850 PSI 3.5"
