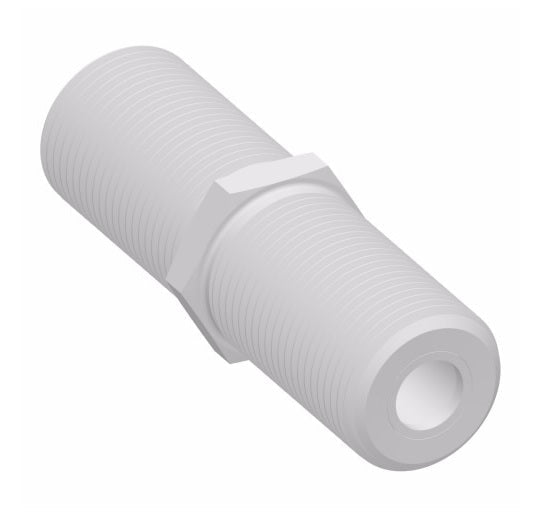

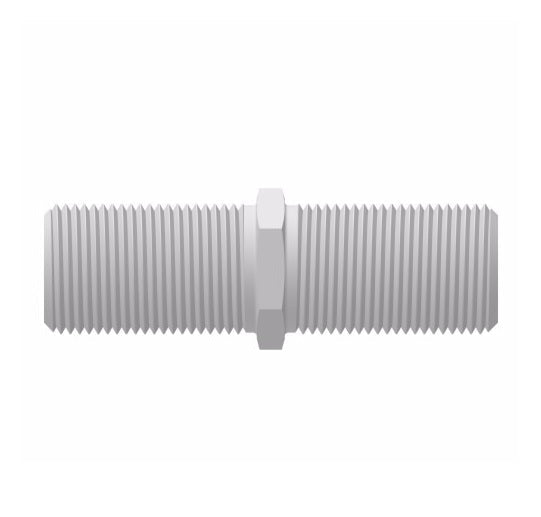

1531X8 by Danfoss | KYNAR® Check Valve | 1/2" Male NPTF x 1/2" Male NPTF | KYNAR®
1531X8 by Danfoss | KYNAR® Check Valve | 1/2" Male NPTF x 1/2" Male NPTF | KYNAR®
1531X8 by Danfoss | KYNAR® Check Valve | 1/2" Male NPTF x 1/2" Male NPTF | KYNAR®
1531X8 by Danfoss | KYNAR® Check Valve | 1/2" Male NPTF x 1/2" Male NPTF | KYNAR®

1531X8 by Danfoss | KYNAR® Check Valve | 1/2" Male NPTF x 1/2" Male NPTF | KYNAR®

$66.41 - $66.41
$66.41
$66.41 - $66.41
$66.41

Aeroquip® by Danfoss
KYNAR® Check Valve
Male NPTF x Male NPTF
Straight
Specifications for Variant SKU: 1531X8 Danfoss
Brand: KYNAR
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPTF, 1/2in Male NPTF, Some Ends Match
Material(s): Nylon
Compatible with the following Series: PT200 Series  |   PT240 Series  |   TP160 Series
Features/Benefits:
  • Zero Leakage
  • Cracking Pressure 1 to 2.5 PSI
Materials:
  • KYNAR® (Polyvinylidene Fluoride)
  • Viton® O-Ring
  • Stainless Ball & Spring
Maximum Operating Temperatures:
  • 180°F @ 220 PSI
Compatible Tubing:
  • For use with PT200, PT240, and TP160 plastic tubing.
  • Tube inserts are recommended for optimal performance with PT200 tubing.

* Operating temperatures of Eaton connectors are regulated by ambient and fluid temperatures, type of fluid being carried, tubing type and conditions of mechanical abuse. Pressures in excess of above specifications in all connector sizes should be tested by the customer in the particular application.
KYNAR®
Part Number		 Male NPTF L J Hex C
1531X2 1/8" 1.00" 0.09" 7/16"
1531X4 1/4" 1.41" 0.19" 5/8"
1531X6 3/8" 1.50" 0.25" 13/16"
1531X8 1/2" 1.81" 0.34" 15/16"

** KYNAR is a registered trademark of Elf Atochem North America, Inc.

Viton is a registered trademark of DuPont Dow Elastomers
