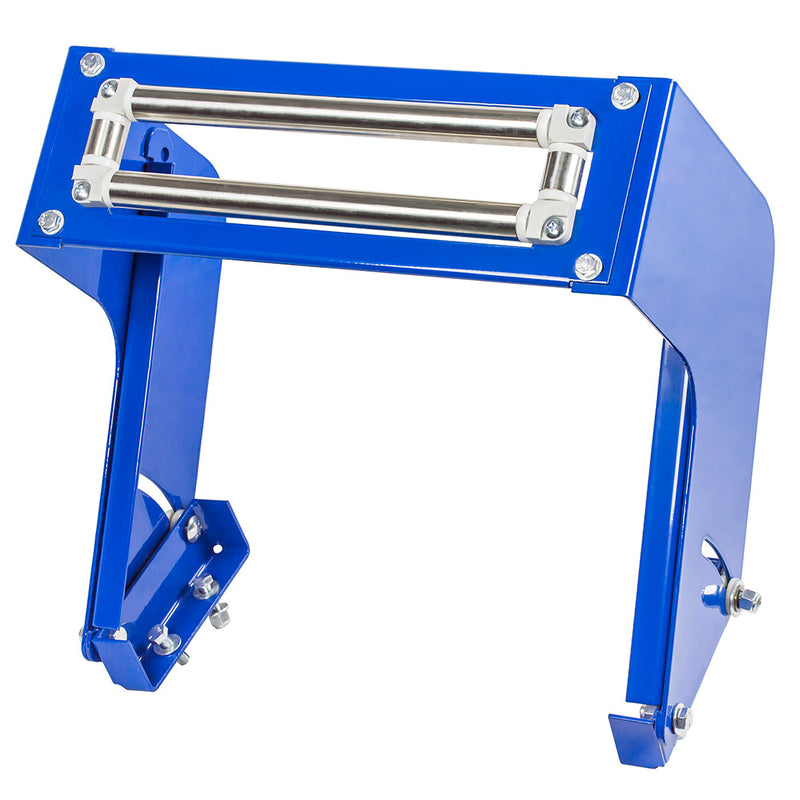

15353-P-20 by Coxreels | 4-Way Top Roller Bracket Extension for Motorized Hose Reels | 20" Drum Width | Fits Storage Series | Steel

15353-P-20 by Coxreels | 4-Way Top Roller Bracket Extension for Motorized Hose Reels | 20" Drum Width | Fits Storage Series | Steel

Save $55.69 Save $55.69
$343.57
$343.57 - $343.57
$343.57
$287.88
$287.88 - $287.88
$287.88
This Item has a 3 Week Lead Time.
Specifications for Variant SKU: 15353-P-20 Cox Reels
Series: 4-Way Top Roller Extension Series
Material(s): Steel
Compatible with the following Series: Storage Series

Coxreels 4-Way Top Rewind Roller Bracket Extension

Extended top-rewind 4-way roller bracket for 1125 Series hand crank and motorized reels.

What are the main product features?
  • 4-way enclosed, pinch-proof 1" stainless steel rollers
  • Powder coated steel brackets
  • 1125 Series only; sized by drum width

Which part numbers are available?

Order the part number whose drum width matches your reel's drum width.

Part Number Drum Width Fits
15353-P-6 6" 1125 Pure Flow, 1125, 1125WCL, HP1125
15353-P-8 8" 1125 Pure Flow, 1125PCL
15353-P-9.5 9.5" 1125
15353-P-11.5 11.5" Storage
15353-P-12 12" 1125 Pure Flow, 1125, 1125WCL, HP1125, Storage
15353-P-15.5 15.5" 1125
15353-P-18 18" 1125, HP1125, Storage
15353-P-20 20" Storage
15353-P-22 22" 1125
15353-P-24 24" 1125, HP1125
15353-P-28 28" 1125, HP1125, Storage

Cox Reels

Family-owned for over 90 years and now in its third generation, Coxreels builds American-made hose, cord, and cable reels using in-house engineering, CNC machining, and robotic welding. Known for quality, durability, and the industry's widest variety, it's a reel line we trust and proudly carry for commercial and industrial use, backed by USA-based support.
